Problems getting TeeChartVCLFMXSOURCE-2018.26 started

[chartist]

Hi,
I have been using TeeChart for almost 20 years, and for the first time I am completely stumped with something as simple as installing the product...

I have a completely clean installation of RAD Studio 10.3.1 Rio on a clean Windows 7 64 bit machine, and I am attempting to add TeeChart 2018.26 to it.

I am using the install file TeeChartVCLFMXSOURCE-2018.26.exe and it ends up running TeeRecompile.

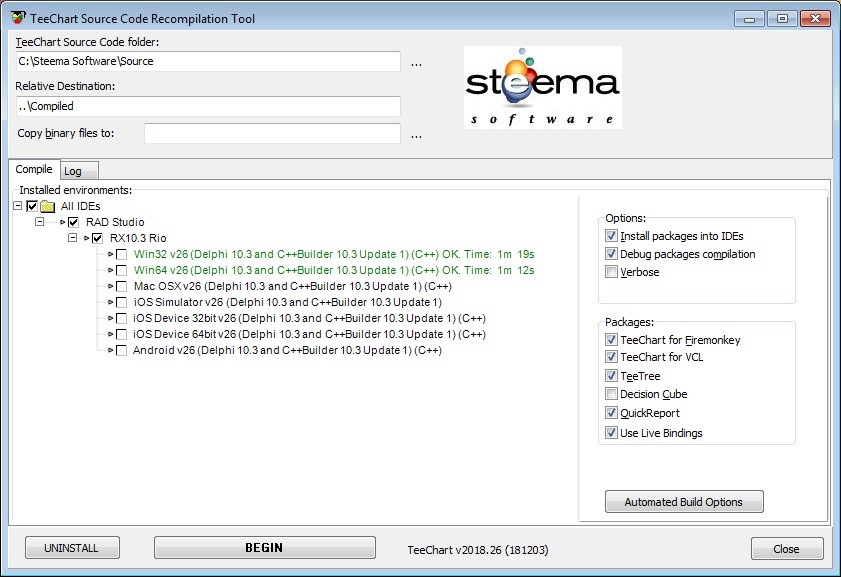

In TeeRecompile, I chose the options you can see here:



Everything looks like it worked. So I create a new Windows VCL project in Rio, and drop the TChart component on the form in the designer, as usual. Nothing else on the form at all, and I don't add any series to the TChart or anything.

The problem comes when I try to compile.

I get an error, "[dcc32 Fatal Error] VCLTee.TeeGDIPlus.pas(46): F2613 Unit 'TeCanvas' not found."

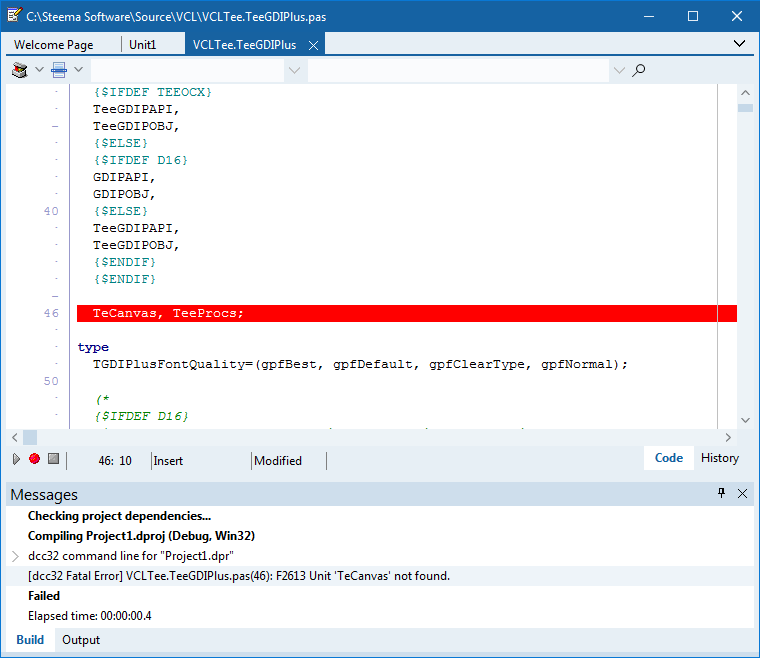

The IDE shows that this is imported in unit VCLTee.TeeGDIPlus:



I have tried everything I could think of... reinstalling several times, including reinstalling Delphi. I have tried adding paths to the project to help TeeChart find the units it is looking for, but nothing seems to help.

This is driving me crazy... please help!

[Yeray]

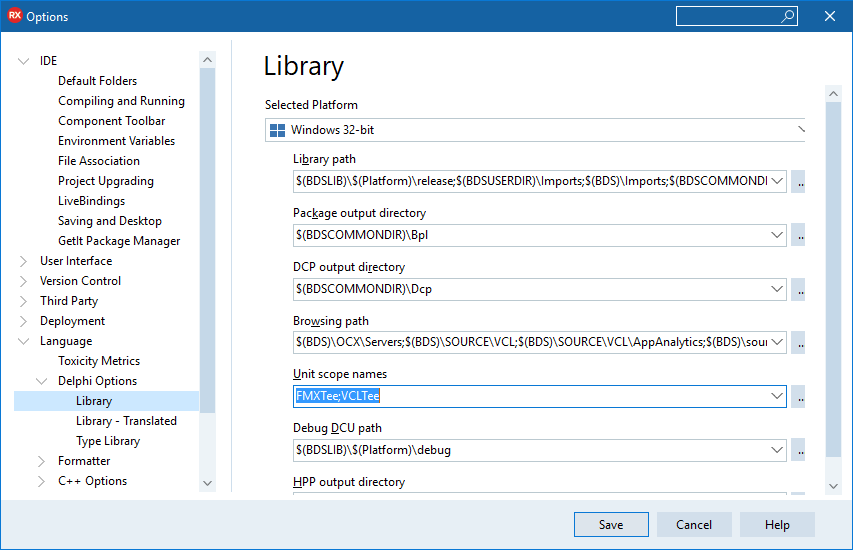

Please, add the "VCLTee" and/or "FMXTee" prefix to the unit scope names in your IDE:


You can add them at the project options, but if you do it at IDE-level, any new project will be able to use them.

Sorry for the inconvenience generated.

[chartist]

That fixed it - thank you Yeray!
