Android CircularGauge Logarithmic axis

[Eliana]

Hi,

I’m using Teechart Java Android source code v3.2013.1219.
I’m using the following code to set a logarithmic axis on the circular gauge but it still gives me a linear scale.

Code: Select all

circularGauge = new CircularGauge(chart.getChart());

circularGauge.setMinimum(0);
circularGauge.setMaximum(512);

circularGauge.getVertAxis().setLogarithmic(true);
circularGauge.getVertAxis().setLogarithmicBase(2.0);
circularGauge.getVertAxis().setIncrement(1);

Do I need to use something else to enable the logarithmic axis or the CircularGauge does not support such functionality?

Thank you in advance.

[Yeray]

Hello,

I've added it to the tracker to be implemented in future releases:
http://bugs.teechart.net/show_bug.cgi?id=771
Feel free to add your mail account to the CC list to be automatically notified when an update arrives.

[Eliana]

Thanks for the feedback.
Btw, do bars and line charts support logarithmic axis?

[Yeray]

Hello,

Yes, take a look at the following code:

Code: Select all

        Bar bar1 = new Bar(tChart1.getChart());
        bar1.fillSampleValues();
        try {
            tChart1.getAxes().getLeft().setLogarithmic(true);
        } catch (ChartException ex) {
            Logger.getLogger(ChartJFrame.class.getName()).log(Level.SEVERE, null, ex);
        }

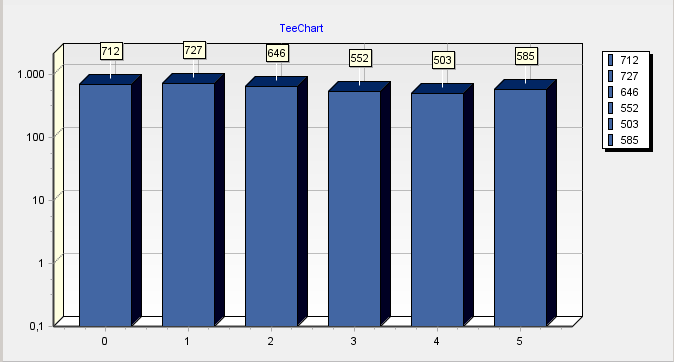

This is how it looks the chart after running the above:


[Eliana]

Great, thanks for the example.
