Regarding Bar chart

[amol]

Hi steema support,

I have a bar chart based on data
.
x axis- 0.0 , 0.4 , 0.9, 0.13 ,0.17 ,0.22, 0.26, 0.30, 0.35, 0.39
Y-Axis- 0.01, 0.78, 0.15, 0.04, 0.01, 0,0,0,0,0

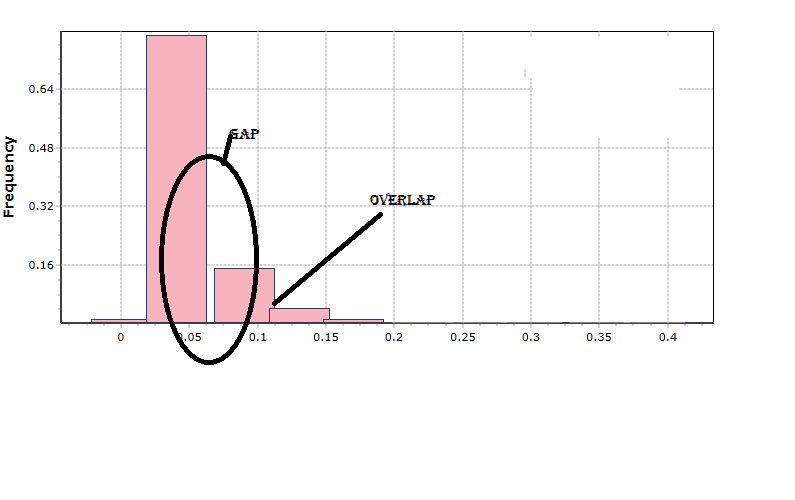

In this i have facing overlap and gap issue. Please look this.

code-

SeriesPlotBar = new Bar(tChartGraph.Chart);
SeriesPlotBar.Color = BarAreaLightRed;
SeriesPlotBar.Marks.Visible = false;
SeriesPlotBar.StackGroup = 0;
SeriesPlotBar.BarWidthPercent = 100;

After setting barwidth percentage issue not resolved.
Rest we have soon provide data for our previous posts.

Thanks

Plano research

[amol]


More Images

[Christopher]

Hello,

Using the latest version of TeeChart.dll and the following code:

Code: Select all

    Bar series;
    private void InitializeChart()
    {
      double[] xvalues = new double[] { 0.0, 0.4, 0.9, 0.13, 0.17, 0.22, 0.26, 0.30, 0.35, 0.39 };
      double[] yvalues = new double[] { 0.01, 0.78, 0.15, 0.04, 0.01, 0, 0, 0, 0, 0 };

      series = new Bar(tChart1.Chart);
      series.Add(xvalues, yvalues);
      series.Marks.Visible = false;

      tChart1.Axes.Bottom.SetMinMax(0, 0.5);
      tChart1.Axes.Left.SetMinMax(0, 0.2);
    }

    private void button2_Click(object sender, EventArgs e)
    {
      series.CustomBarWidth = 30;
      //series.BarWidthPercent = 20;
    }

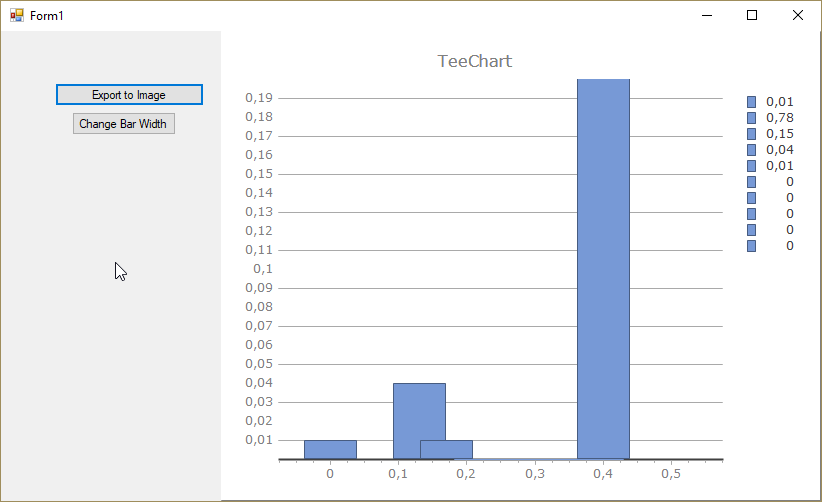

I obtain the following before the button click:

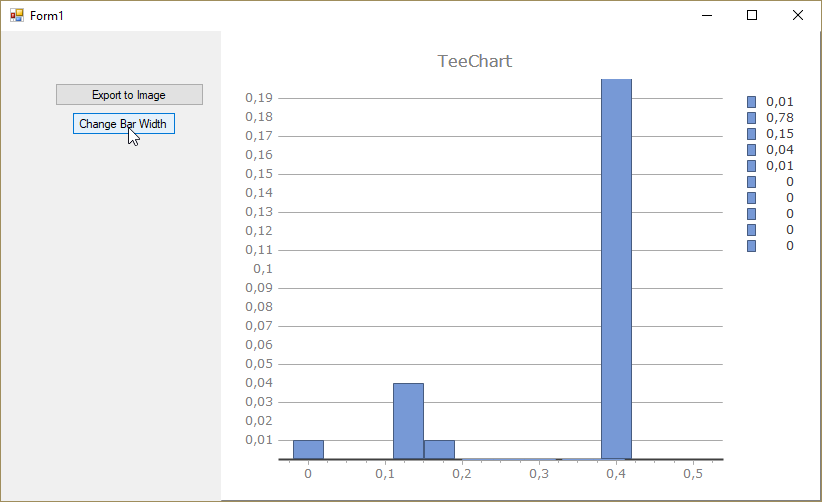

and after the click I obtain:


in this test both CustomBarWidth and BarWidthPercent work as expected. Which version of TeeChart.dll are you using?

[amol]

I would like to share that we can not fix the width of bars and my expectation is to combine the bars without gap and without overlap.

I am giving 2 more dataset.

Ist Dataset

X- 0.06,0.18,0.13,0.41,0.53,0.64,0.76,0.87,0.9,1.11
Y- 0.01,0.04,0.09,0.16,0.20,0.19,0.16,0.09,.0.05,.0.0

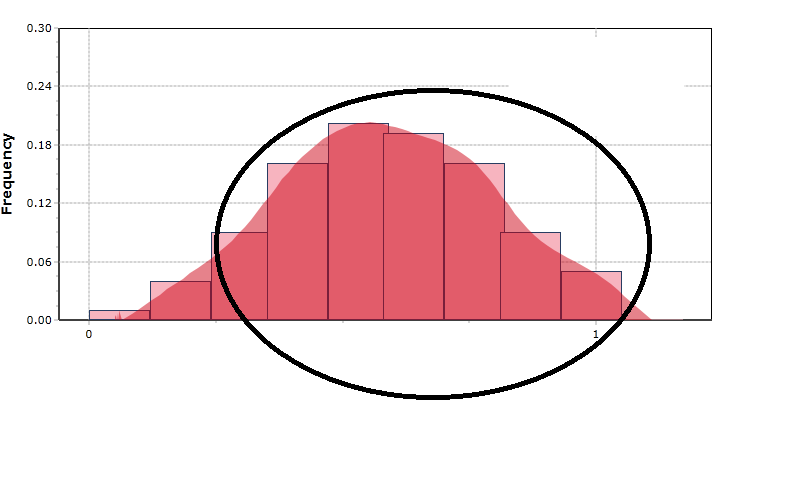

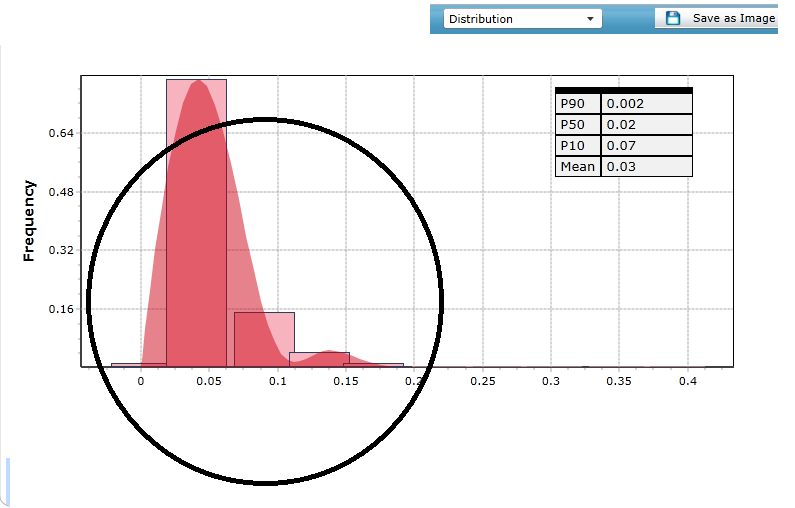

And the chart image is as below, in this case overlapping is coming. I am using silverlight.


IINd Dataset-

X- 0.0, 0.04 ,0.09 ,0.13 ,0.17 ,0.22 ,0.26 ,0.30 ,0.35 ,0.39
Y- 0.01, 0.78, 0.15 , 0.04, 0.01, 0, 0, 0, 0, 0

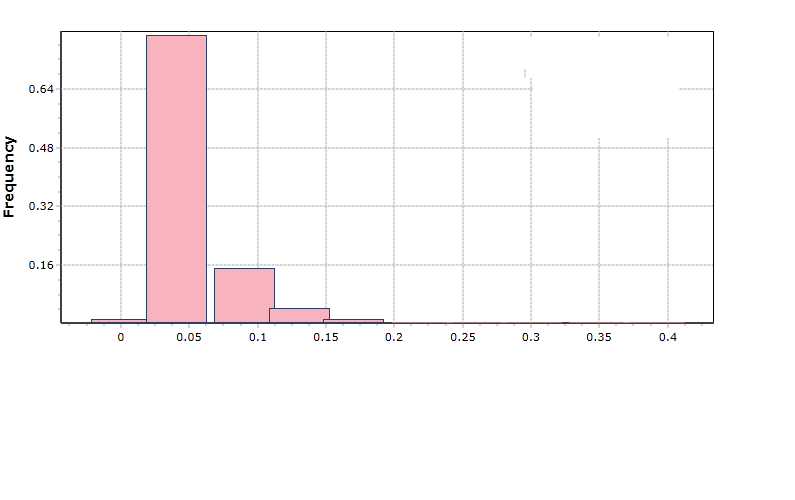

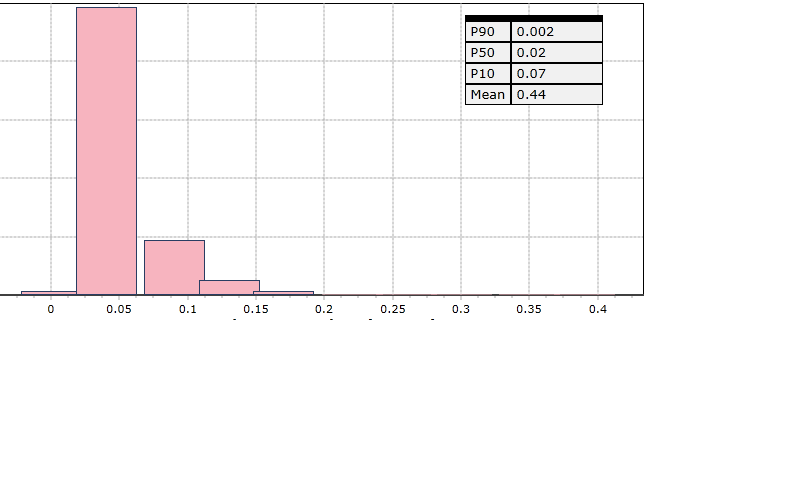

In This gap is coming-


Please provide dome fruitful solution. In Excel we are able to plot expected. And i am using percentage 100%.

Thanks

Plano

[Christopher]

Hello,

TeeChart has no facility for allowing the Bar series to draw bars of different widths. If you want bars of different widths you can use the Histogram series, e.g.

Code: Select all

    Histogram series;
    private void InitializeChart()
    {
      double[] xvalues = new double[] { 0.0, 0.4, 0.9, 0.13, 0.17, 0.22, 0.26, 0.30, 0.35, 0.39 };
      double[] yvalues = new double[] { 0.01, 0.78, 0.15, 0.04, 0.01, 0, 0, 0, 0, 0 };

      series = new Histogram(tChart1.Chart);
      series.XValues.Order = ValueListOrder.Ascending;

      series.Add(xvalues, yvalues);
      series.Marks.Visible = false;
      series.XValues.Sort();

      tChart1.Axes.Bottom.SetMinMax(0, 0.9);
      tChart1.Axes.Left.SetMinMax(-1, 0.8);
    }

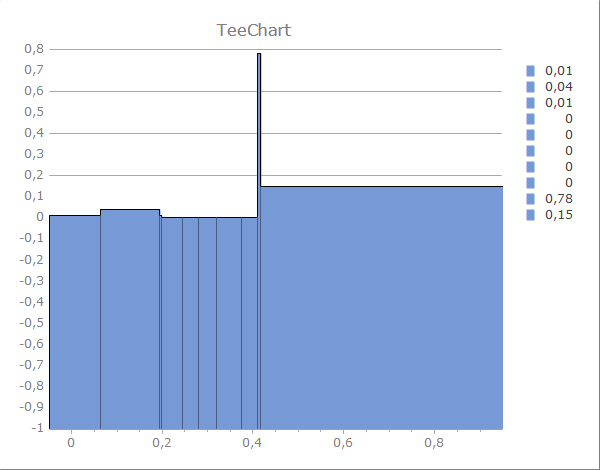

which gives me:
