inverting the bottom axis line

[amol]

Hi Stemma support,
We are attaching a demo in which we are using line series with stair property to true. If we click on Inverted button, then chart bottom axis got inverted. So with respected to the axis line series must also be changed (or inverted), but it does not invert line respectively.

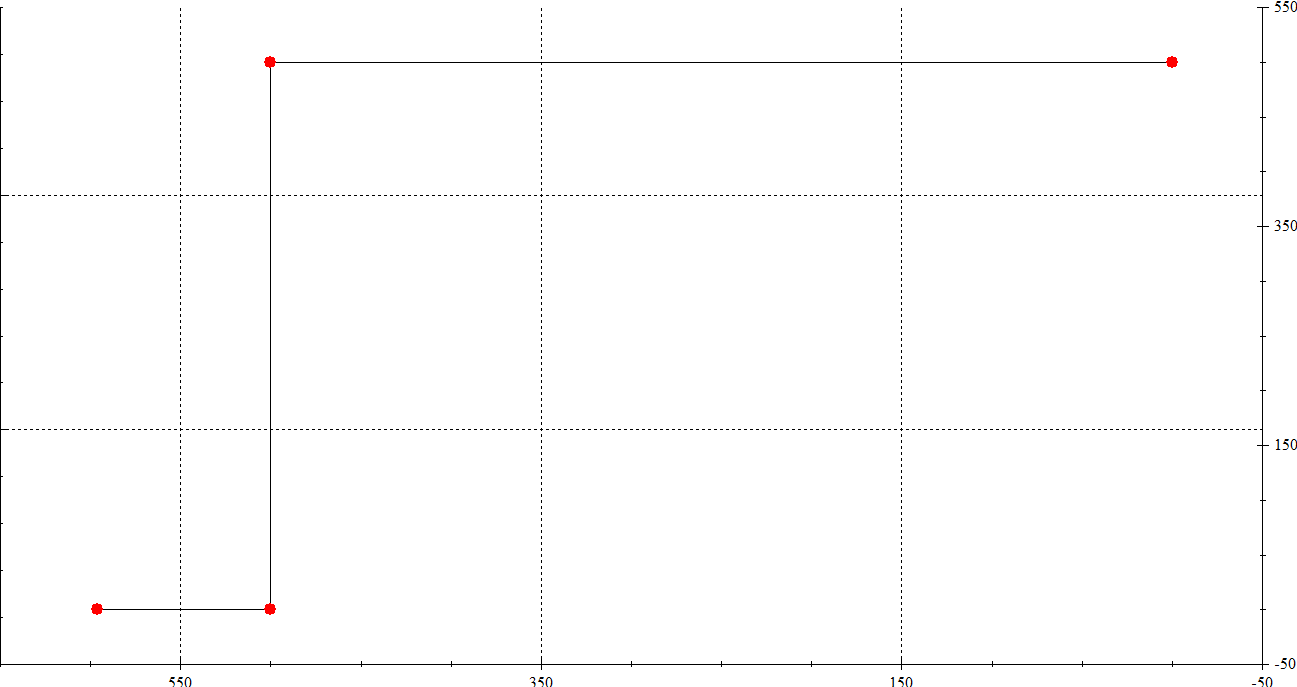

As shown in image below after inverting axis line changed but this is not correct.

But after inverting it shows like this that is not correct.


After inverting axis it must be like this

it must be like this


Please provide any solution for the same
Thanks in advance.

[amol]

Hi Steema Support,
we are waiting for your Reply.
Thanks .

[Christopher]

As shown in image below after inverting axis line changed but this is not correct.

It is one possibility. The other is to use code similar to this:

Code: Select all

    Line line1;
    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      line1 = new Line(tChart1.Chart);

      line1.Add(0, 500);
      line1.Add(500, 0);
      line1.Add(600, 0);
      line1.Stairs = true;
      tChart1.Axes.Left.MaximumOffset = 20;
      tChart1.Axes.Left.MinimumOffset = 20;
      tChart1.Axes.Bottom.MaximumOffset = 20;
      tChart1.Axes.Bottom.MinimumOffset = 20;
    }

    private void button4_Click(object sender, EventArgs e)
    {
      tChart1.Axes.Bottom.Inverted = !tChart1.Axes.Bottom.Inverted;
      line1.InvertedStairs = !line1.InvertedStairs;
    }
