TeeChart New Version Integration Issue

[Quant]

Hi,

We have used the Latest Version of TeeChart with our Project and we are getting following visible differences as shown in attached screenshots.

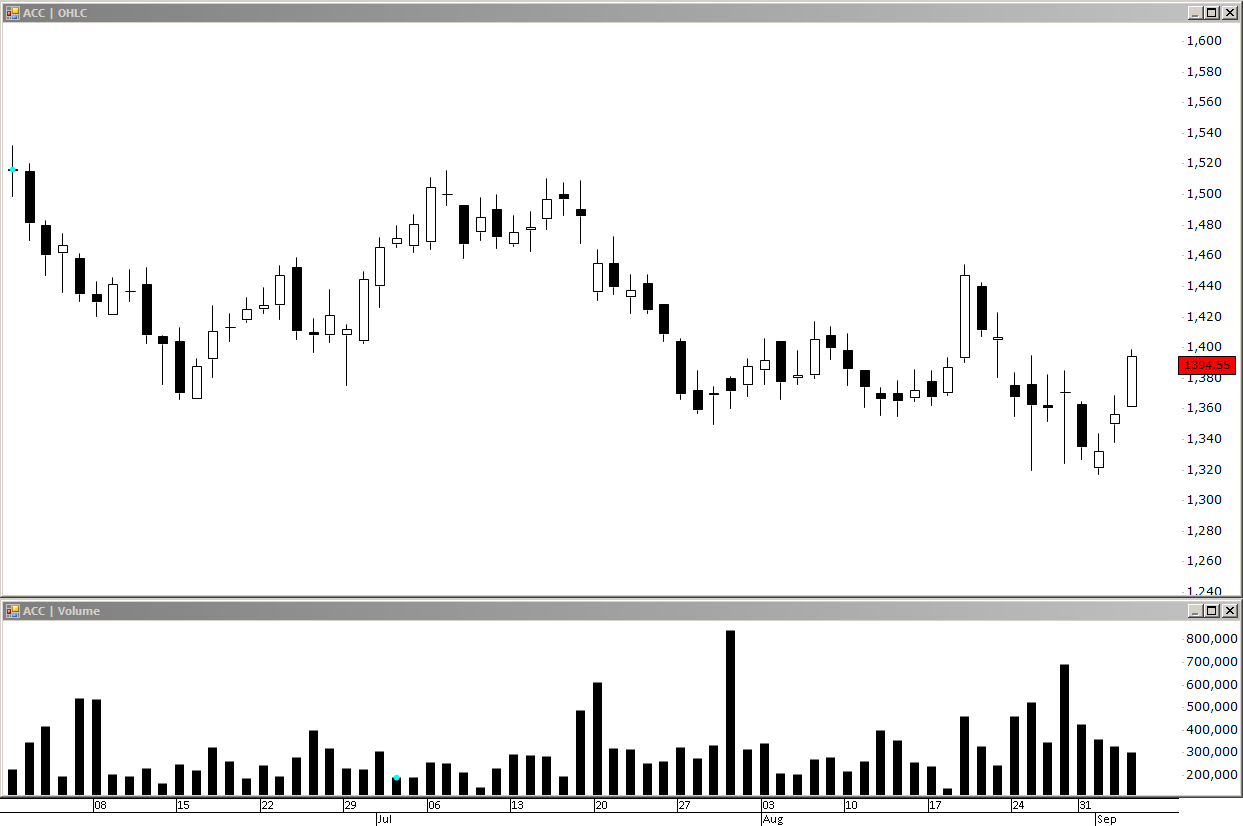

With Previous Version of TeeChart

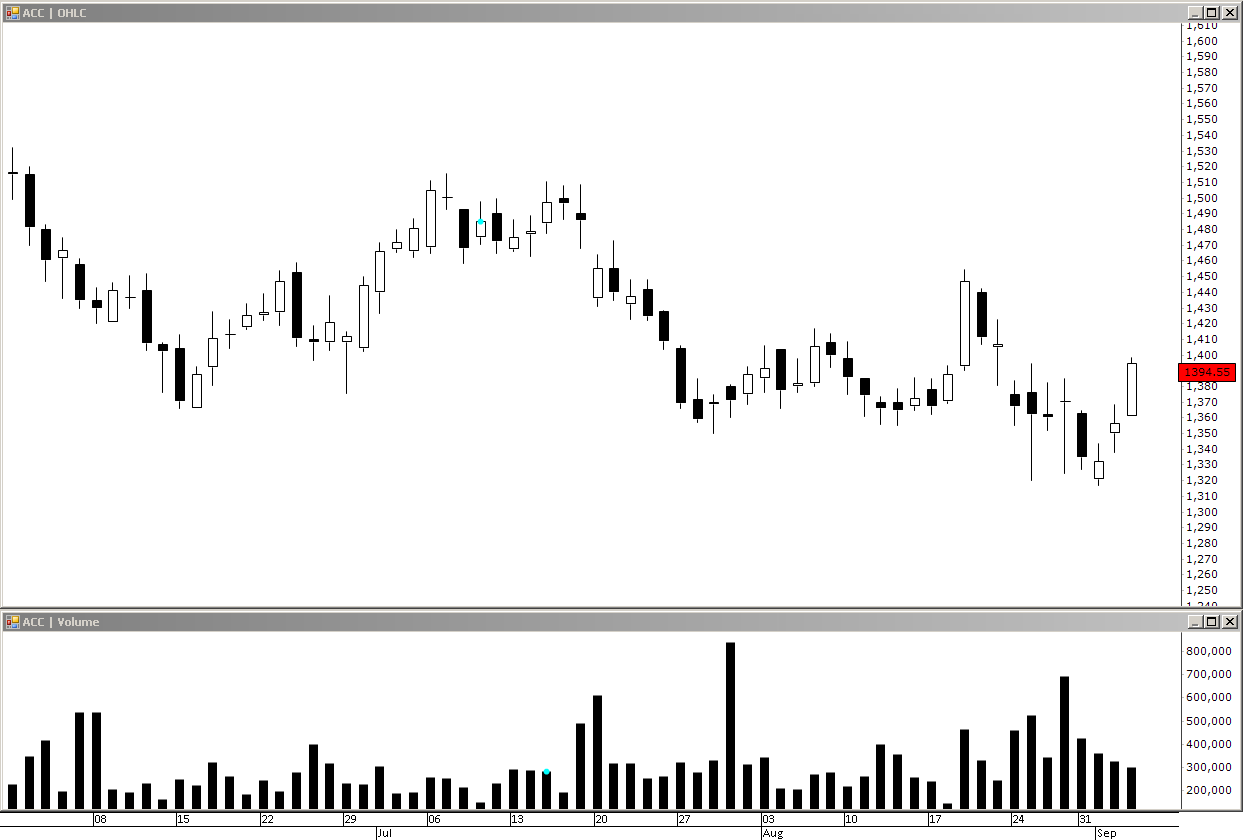

With Previous Version of TeeChart


There are two visible differences:
1] Axis Labels Font Size gets increased.
2] Axis Border gets Invisible.

Please let us know how to resolve them.

Note: We didn't change anything in our project. We checked the same with older TeeChart Version again which is working fine.

[Christopher]

Hello,

Using TeeChart.dll 4.1.2015.12161, the .NET 3.5 version shipped with the latest release, running the following code:

Code: Select all

    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      tChart1.Series.Add(typeof(Candle)).FillSampleValues();
    }

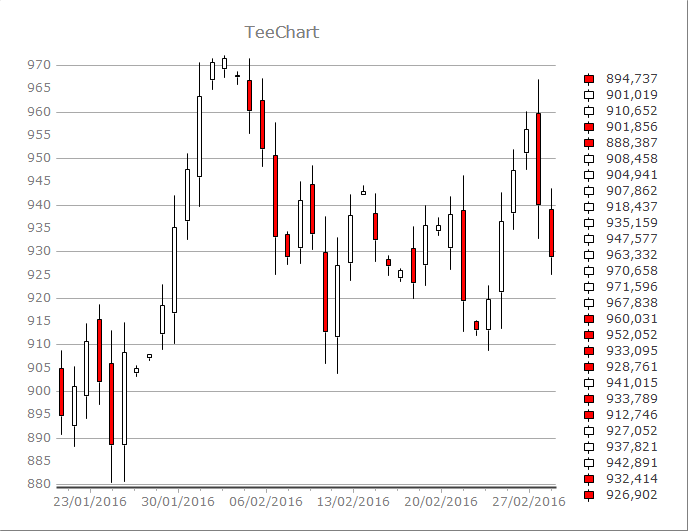

gives me the following chart:


this is because of changes to the default theme. To change the theme back to that of previous versions, you can use:

Code: Select all

    private void InitializeChart()
    {
      tChart1.Aspect.View3D = false;
      tChart1.Series.Add(typeof(Candle)).FillSampleValues();

      tChart1.CurrentTheme = ThemeType.Opera;
    }

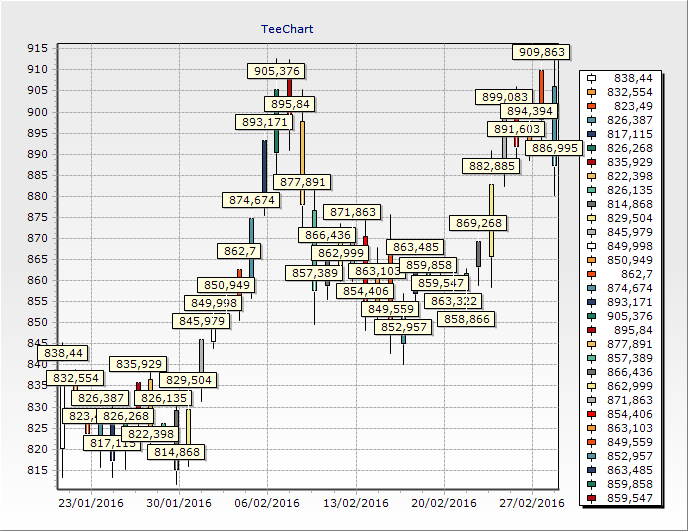

which gives the following:


[Quant]

Hi,

Code: Select all

tChart1.CurrentTheme = ThemeType.Opera;

We added following code to our project and it changed whole appearance of the chart.
Attaching the screenshot for your reference. Please check previously attached screenshot for our original Chart Appearance.

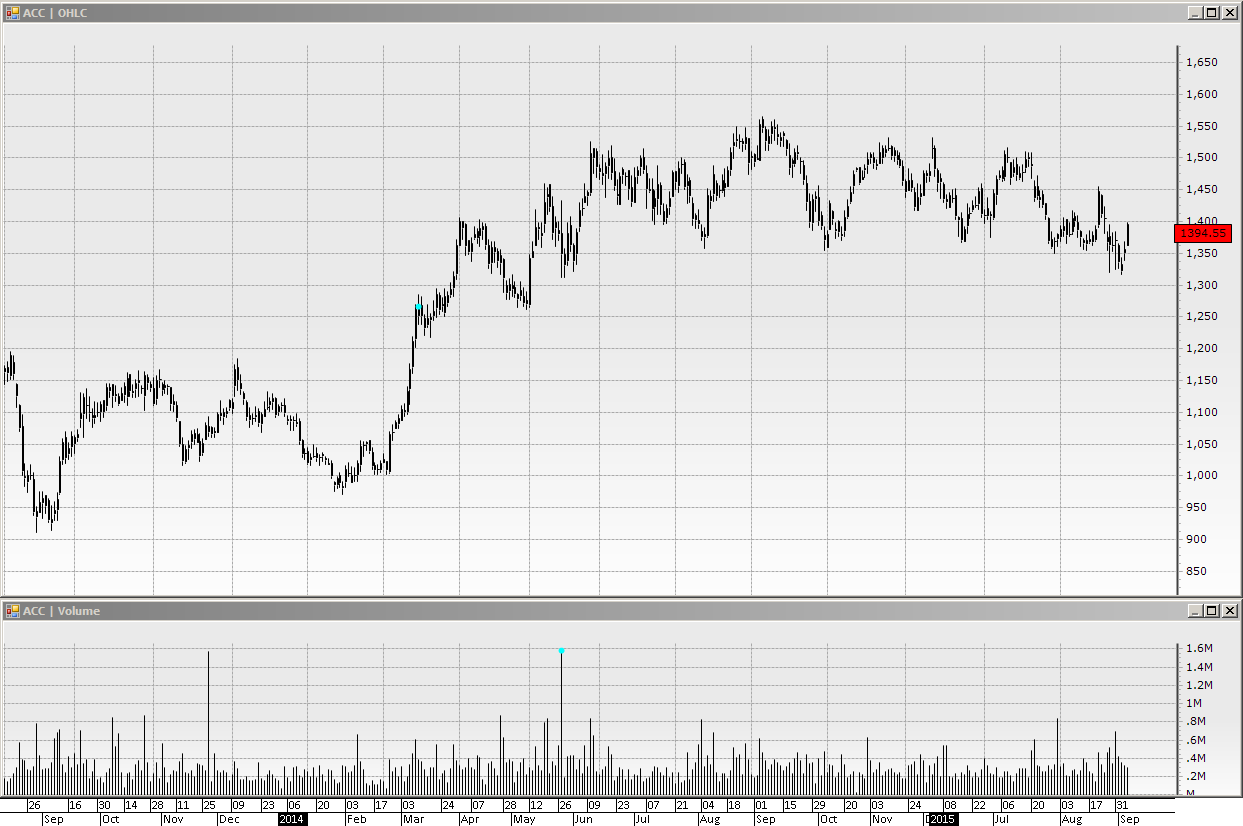

After Opera Theme Applied.png (76.33 KiB) Viewed 10772 times

[Christopher]

We added following code to our project and it changed whole appearance of the chart.

Yes, that is the expected behaviour.

May I suggest, then, that you either:
1) change the theme and then apply all the color/font etc. changes you wish
2) do not change the theme, but specify *all* the color/font etc. changes you wish
