Code: Select all
private Steema.TeeChart.Styles.Ternary series1;
private void InitializeChart()
{
series1 = new Steema.TeeChart.Styles.Ternary(tChart1.Chart);
tChart1.Dock = DockStyle.Fill;
tChart1.Aspect.View3D = false;
series1.FillSampleValues();
tChart1.Axes.Bottom.Ticks.Visible = true;
tChart1.Axes.Bottom.Ticks.Color = Color.Red;
tChart1.Axes.Bottom.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round;
tChart1.Axes.Bottom.Ticks.Width = 7;
}Code: Select all
Public Sub New()
' This call is required by the designer.
InitializeComponent()
tChart1 = New Steema.TeeChart.TChart()
Me.Controls.Add(tChart1)
tChart1.Dock = DockStyle.Fill
InitializeChart()
' Add any initialization after the InitializeComponent() call.
End Sub
Private series1 As Steema.TeeChart.Styles.Ternary
Private Sub InitializeChart()
series1 = New Steema.TeeChart.Styles.Ternary(tChart1.Chart)
series1.FillSampleValues()
' Axes Bottom
tChart1.Axes.Bottom.Ticks.Visible = True
tChart1.Axes.Bottom.Ticks.Color = Color.Red
tChart1.Axes.Bottom.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round
tChart1.Axes.Bottom.Ticks.Width = 7
tChart1.Axes.Bottom.SetMinMax(series1.XValues.Minimum, series1.XValues.Maximum)
tChart1.Axes.Bottom.Increment = 20
'Axes Left
tChart1.Axes.Left.Ticks.Visible = True
tChart1.Axes.Left.Ticks.Color = Color.Red
tChart1.Axes.Left.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round
tChart1.Axes.Left.Ticks.Width = 7
tChart1.Axes.Right.SetMinMax(series1.YValues.Minimum, series1.YValues.Maximum)
tChart1.Axes.Right.Increment = 20
'Axes Right
tChart1.Axes.Right.Ticks.Visible = True
tChart1.Axes.Right.Ticks.Color = Color.Red
tChart1.Axes.Right.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round
tChart1.Axes.Right.Ticks.Width = 7
tChart1.Axes.Right.SetMinMax(series1.ZValues.Minimum, series1.ZValues.Maximum)
tChart1.Axes.Right.Increment = 20
series1.VertexTitles(0)(0) = "Vertex A"
series1.VertexTitles(1)(0) = "Vertex B"
series1.VertexTitles(2)(0) = "Vertex C"
End SubPlease see the answer I put in this link12 ternary charts in the series.
Code: Select all
Steema.TeeChart.TChart tChart1;
public Form1()
{
InitializeComponent();
tChart1 = new Steema.TeeChart.TChart();
this.Controls.Add(tChart1);
tChart1.Dock = DockStyle.Fill;
InitializeChart();
}
private void InitializeChart()
{
for (int i = 0; i < 12; i )
{
new Steema.TeeChart.Styles.Ternary(tChart1.Chart);
tChart1[i].FillSampleValues();
}
// Axes Bottom
tChart1.Axes.Bottom.Ticks.Visible = true;
tChart1.Axes.Bottom.Ticks.Color = Color.Red;
tChart1.Axes.Bottom.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round;
tChart1.Axes.Bottom.Ticks.Width = 2;
tChart1.Axes.Bottom.Labels.Font.Size = 12;
tChart1.Axes.Bottom.AxisPen.Width = 3;
////Axes Left
tChart1.Axes.Left.Ticks.Visible = true;
tChart1.Axes.Left.Ticks.Color = Color.Red;
tChart1.Axes.Left.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round;
tChart1.Axes.Left.Ticks.Width = 2;
tChart1.Axes.Left.Labels.Font.Size = 12;
tChart1.Axes.Left.AxisPen.Width = 3;
////Axes Right
tChart1.Axes.Right.Ticks.Visible = true;
tChart1.Axes.Right.Ticks.Color = Color.Red;
tChart1.Axes.Right.Ticks.EndCap = System.Drawing.Drawing2D.LineCap.Round;
tChart1.Axes.Right.Ticks.Width = 2;
tChart1.Axes.Right.Labels.Font.Size = 12;
tChart1.Axes.Right.AxisPen.Width = 3;
foreach (Steema.TeeChart.Styles.Ternary series1 in tChart1.Series)
{
series1.VertexTitles[0][0] = "Vertex A";
series1.VertexTitles[1][0] = "Vertex B";
series1.VertexTitles[2][0] = "Vertex C";
}

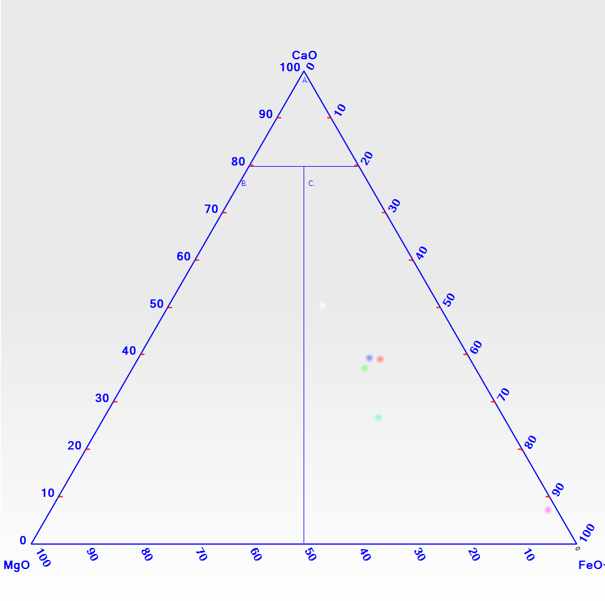

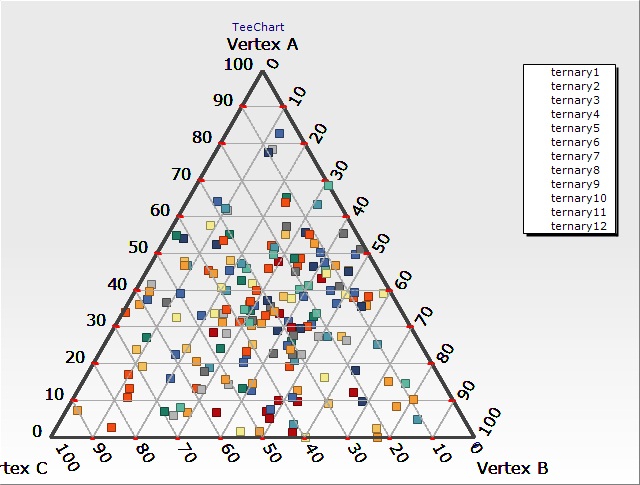

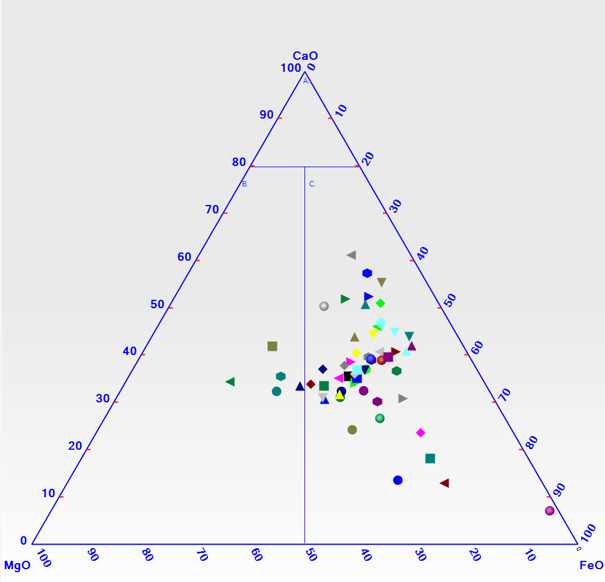

}Thanks for your code. Finally I have understood what was the problem. I have added your request in the bug list with number [TF02015221], we will try to fix it for next maintenance releases.Here is the result using your code...see picture. Also the bottom tick marks continue not to plot.
TChart1.Series.Chart.Axes.Left.Ticks.Visible = True
TChart1.Series.Chart.Axes.Right.Ticks.Visible = True
TChart1.Series.Chart.Axes.Bottom.Ticks.Visible = True
TChart1.Series.Chart.Axes.Left.Ticks.Length = 7
TChart1.Series.Chart.Axes.Right.Ticks.Length = 7
TChart1.Series.Chart.Axes.Bottom.Ticks.Length = 7
TChart1.Series.Chart.Axes.Left.Ticks.Width = 2
TChart1.Series.Chart.Axes.Right.Ticks.Width = 2
TChart1.Series.Chart.Axes.Bottom.Ticks.Width = 2
TChart1.Series.Chart.Axes.Bottom.Ticks.Color = Drawing.Color.Red
TChart1.Series.Chart.Axes.Left.Ticks.Color = Drawing.Color.Red
TChart1.Series.Chart.Axes.Right.Ticks.Color = Drawing.Color.Red

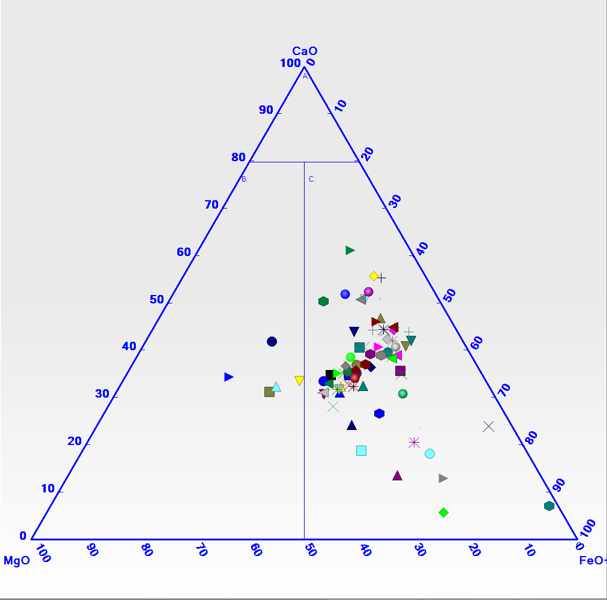

Code: Select all
Steema.TeeChart.TChart tChart1;
public Form1()
{
InitializeComponent();
tChart1 = new Steema.TeeChart.TChart();
this.Controls.Add(tChart1);
tChart1.Dock = DockStyle.Fill;
InitializeChart();
}
private void InitializeChart()
{
for (int i = 0; i < 12; i )
{
new Steema.TeeChart.Styles.Ternary(tChart1.Chart);
tChart1[i].FillSampleValues();
(tChart1[i] as Steema.TeeChart.Styles.Ternary).Pointer.Visible = true;
(tChart1[i] as Steema.TeeChart.Styles.Ternary).Pointer.Brush.Transparency = 0;
}

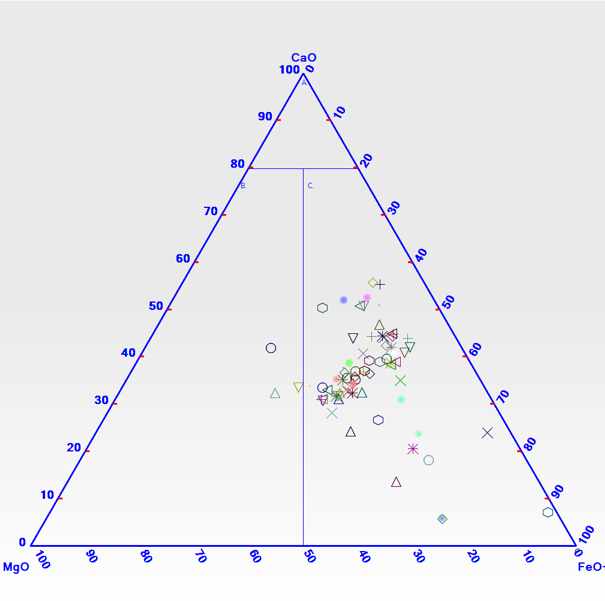

}Does not work if I plot 24 samples, 2 samples each pointer style. If I plot 12 samples, 1 sample each pointer style, works fine.Could you please, tell us if using previous code transparency property works for you? if in previous example doesn't appear your problem, please modify it, because we can reproduce it here.
.
