Dates Range on the bottom axis - properties

[qcrnd]

Hi ,

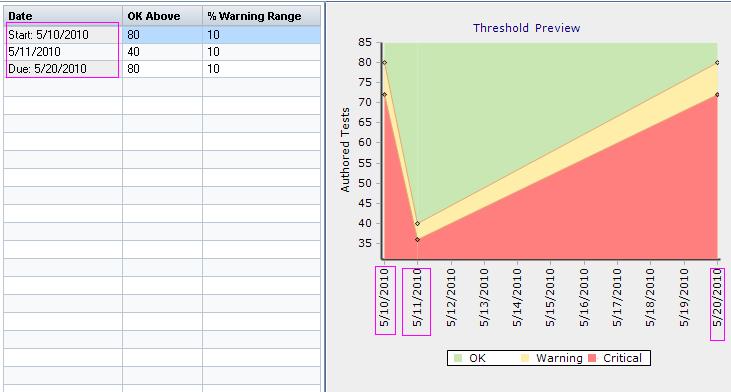

See the attachment - In my chart I have 3 area series and on the lest I have the values of the series.
I want to show only the dates that have value in the series.


Thanks

[Sandra]

Hello qcrnd,


Please, you could say us if you checked my previous code and what problem are you have found in it?


On the other hand, I have made other example that works fine here. Please, check next code if works as you want.

Code: Select all

    public Form1()
        {
            InitializeComponent();
            InitializeChart();
        }
        private void InitializeChart()
        {
            tChart1.Aspect.View3D = false;
            Steema.TeeChart.Styles.Area area = new Steema.TeeChart.Styles.Area(tChart1.Chart);
            Steema.TeeChart.Styles.Area area1 = new Steema.TeeChart.Styles.Area(tChart1.Chart);
            Steema.TeeChart.Styles.Area area2 = new Steema.TeeChart.Styles.Area(tChart1.Chart);

            area.XValues.DateTime = true;
            area1.XValues.DateTime = true;
            area2.XValues.DateTime = true;

            area.Pointer.Visible = true;
            area1.Pointer.Visible = true;
            area2.Pointer.Visible = true;
            area.AreaLines.Visible = false;
            area1.AreaLines.Visible = false;
            area2.AreaLines.Visible = false;
            area.Pointer.Pen.Color = area.LinePen.Color;
            area1.Pointer.Pen.Color = area1.LinePen.Color;
            area2.Pointer.Pen.Color = area2.LinePen.Color;
            area.Pointer.InflateMargins = false;

            Random rnd = new Random();

            for (int i = 0; i < 3; ++i)
            {
                if (i == 0)
                {
                    area.Add(DateTime.Now.AddDays(i), 80, DateTime.Now.AddDays(i).ToShortDateString());
                    area1.Add(DateTime.Now.AddDays(i), 80, DateTime.Now.AddDays(i).ToShortDateString());
                    area2.Add(DateTime.Now.AddDays(i), 80, DateTime.Now.AddDays(i).ToShortDateString());

                }
                else if (i == 1)
                {
                    area.Add(DateTime.Now.AddDays(i), 40, DateTime.Now.AddDays(i).ToShortDateString());
                    area1.Add(DateTime.Now.AddDays(i), 40, DateTime.Now.AddDays(i).ToShortDateString());
                    area2.Add(DateTime.Now.AddDays(i), 40, DateTime.Now.AddDays(i).ToShortDateString());
                }
                else if (i == 2)
                {
                    area.Add(DateTime.Now.AddDays(i + 10), 80, DateTime.Now.AddDays(i + 10).ToShortDateString());
                    area1.Add(DateTime.Now.AddDays(i + 10), 80, DateTime.Now.AddDays(i + 10).ToShortDateString());
                    area2.Add(DateTime.Now.AddDays(i + 10), 80, DateTime.Now.AddDays(i + 10).ToShortDateString());

                }
            }

            tChart1.Panel.MarginBottom = 20;
            tChart1.Axes.Bottom.Labels.Angle = 90;
            area.MultiArea = Steema.TeeChart.Styles.MultiAreas.Stacked;
        }

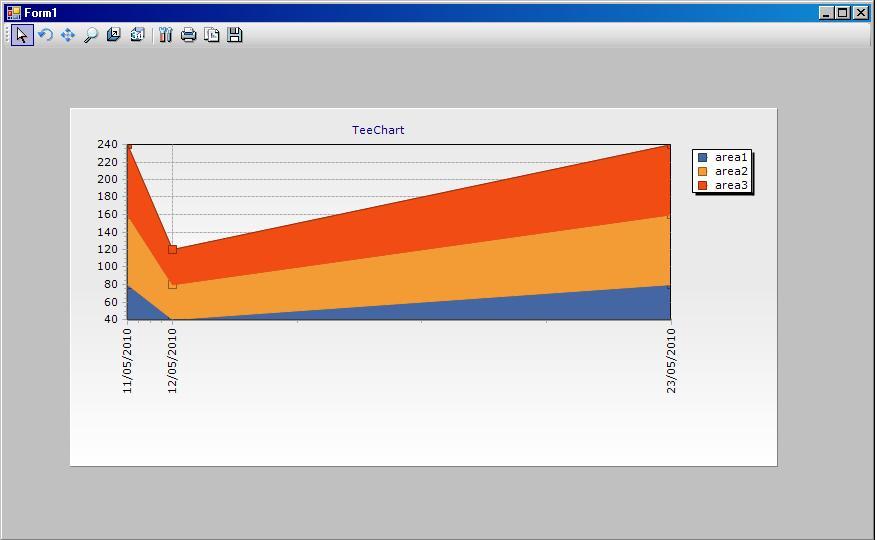

Also, I have attached an image, because you could see our results that we have obtained with previous code:


If you don't get same results, with our code or it doesn't works as you want, please modify code or explain exactly what we must do to reproduce your problem.


Thanks,

[qcrnd]

Hi

Your example is good and work exactly as I want.

But in my solution on my chart I got all the days between.
Do yo know what property can cause this behavior?

Thanks

[Narcís]

Hi qcrnd,

Have you tried adding axis labels directly when populating the series as Sandra did?

[qcrnd]

Hi
You are right - I missed this part .
Now it works OK:)

Thanks
