Some long standing bugs

[axrDegen]

Hello,

Here is a project showing 3 bugs that I noticed already for a long time and that are somehow not getting fixed in any release:
1) The position of the title of the Depth Right axis is completely OFF (for OpenGL mode)
2) The Mark Tips tool doesn't work at all in 3D OpenGL mode (No hints get shown)
3) It is impossible to switch ON/OFF series in the Legend when the Chart/TeeCommander mode is different from Select mode, which is very disturbing. In 2D mode it is well possible to zoom AND use the Legend for switching on/off series.

Are there any fixes for that?

best regards,

Thomas

[Yeray]

Hello,

1) The position of the title of the Depth Right axis is completely OFF (for OpenGL mode)

Right. That's an old ticket:
http://bugs.teechart.net/show_bug.cgi?id=697
I've incremented its priority.

2) The Mark Tips tool doesn't work at all in 3D OpenGL mode (No hints get shown)

I can't find a ticket exactly matching this description but I find some tickets that look related:
http://bugs.teechart.net/show_bug.cgi?id=804
http://bugs.teechart.net/show_bug.cgi?id=1262
http://bugs.teechart.net/show_bug.cgi?id=1929

3) It is impossible to switch ON/OFF series in the Legend when the Chart/TeeCommander mode is different from Select mode, which is very disturbing. In 2D mode it is well possible to zoom AND use the Legend for switching on/off series.

I can't find a ticket reporting this earlier. Do you have a reference?

[axrDegen]

Hello Yeray,

No, I actually don't have a reference for the 3rd bug. It is so obvious and disturbing when you use a 3D Chart that I thought it must be listed somewhere.
These checkboxes should be either clearly disabled/grayed out when not accessible or they should just work.

best regards,

Thomas

[Yeray]

Right. That's an old ticket:
http://bugs.teechart.net/show_bug.cgi?id=697
I've incremented its priority.

I've found a possible fix for this. You just have to add a "-" sign to the "glTranslatef(-x,y,-z)" call in the TGLCanvas.RotateLabel3D function in TeeGLCanvas.pas:

Code: Select all

procedure TGLCanvas.RotateLabel3D(x,y,z:Integer; Const St:String; RotDegree:Double;
                                  AllowHTML:Boolean=False);
begin
  glPushMatrix;
  glTranslatef(x,-y,0);
  glRotatef(RotDegree,0,0,1);
  glTranslatef(-x,y,-z);
  TextOut(X,Y,St);
  glPopMatrix;

  Assert(CheckGLError,'RotateLabel3D');
end;

[Yeray]

Hello again,

3) It is impossible to switch ON/OFF series in the Legend when the Chart/TeeCommander mode is different from Select mode, which is very disturbing. In 2D mode it is well possible to zoom AND use the Legend for switching on/off series.

I've added it to the public tracker here:
http://bugs.teechart.net/show_bug.cgi?id=2270

However, I don't see any difference between 2D and 3D modes.
- In 2D & normal mode selected, you can draw a zoom rectangle and you can use the legend checkboxes.
- In 3D & normal mode selected, you can draw a zoom rectangle and you can use the legend checkboxes.
- In 2D & zoom mode selected, you can zoom the chart but the legend checkboxes don't work.
- In 3D & zoom mode selected, you can zoom the chart but the legend checkboxes don't work.

It also does the same in GDIPlus.

[axrDegen]

Hi Yeray,

the change in TGLCanvas.RotateLabel3D indeed fixes the position of the axis label but still, the orientation is obviously wrong:

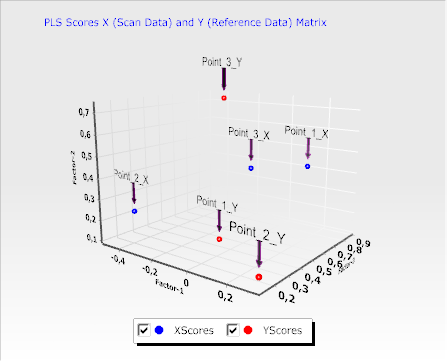

Wrong orientation of depth axis label


Can you please fix that too?
The label should like all others run along the axis.

Thanks and best regards,

Thomas

[Yeray]

Hello,

You can set the Depth axis angle to zero:

Code: Select all

    TheChart.DepthAxis.Title.Angle:=0;

This angle is 270 by default for both OpenGL, GDI and GDIPlus. Changing that default could brake other customers projects who may be expecting it to be 270.

[axrDegen]

Hi Yeray,

No, that doesn't help, the Title still shows a wrong alignment:

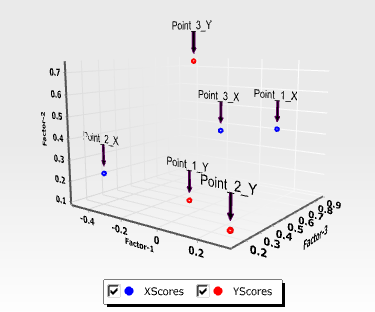

wrong alignment


The Title should run parallel to the axis, like the Titles of all other axes,
this title rotates perpendicular to the axis around the axis.

Thomas

[Yeray]

Hello,

I don't think that would look nice:

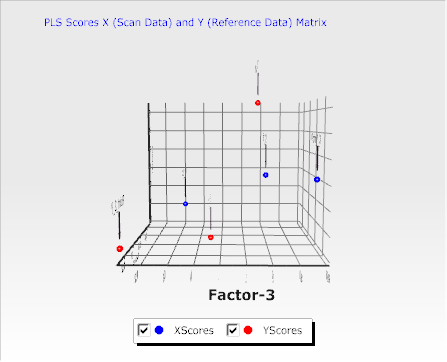

Note the labels and the title for that depth axis wouldn't be in the same plane.

[axrDegen]

Hello Yeray,

that is indeed bad, I had expected it to look something like that:


best regards,

Thomas

[Yeray]

Hello,

That could be achieved incrementing the font size. However, the axis title would be in a plane perpendicular to the labels for the same axis. So, if you rotate the chart to see the title from the front, you won't be able to read the labels.


Code: Select all

uses OpenGL2;

Code: Select all

procedure TForm2.FillTheScoreChart(TheChart: TChart; Color: TColor; Title: string; IsVisible: Boolean);
//...
    TheChart.DepthAxis.Title.Font.Size:=15;
    TheChart.DepthAxis.Title.Visible:=False;
  //...

Code: Select all

procedure TForm2.PLSScoresChartAfterDraw(Sender: TObject);
var x, y, z, RotDegree: Integer;
begin
  with PLSScoresChart.Axes.Depth do
  begin
    RotDegree:=Title.Angle;
    x:=PosTitle;
    y:=PLSScoresChart.ChartRect.Bottom-Round(PLSScoresChart.ChartHeight*ZPosition*0.01);
    z:=PLSScoresChart.Width3D div 2;

    glPushMatrix;
    glTranslatef(x,0,0);
    glRotatef(-RotDegree,0,1,0);
    //glTranslatef(-x,0,0);
    PLSScoresChart.Canvas.Font.Assign(Title.Font);
    PLSScoresChart.Canvas.TextOut(Z-20,Y+15,Title.Text);
    glPopMatrix;
  end;
end;

[axrDegen]

Hi Yeray,

Ok, that looks a lot better and correct now.

> if you rotate the chart to see the title from the front, you won't be able to read the labels.
That's fine because if you don't rotate the chart you can't read anything else on the Z(depth)-axis either.
If you want to see and read all 3 axes you need to rotate the chart into the shown position, then all axes are evenly exposed.


Now the code should be fixed so that this gets the default behavior for the axes titles.
So we wouldn't need to put extra code in the OnAfterDraw event.

best regards,

Thomas

[Yeray]

Hello Thomas,

Now the code should be fixed so that this gets the default behavior for the axes titles.
So we wouldn't need to put extra code in the OnAfterDraw event.

I closed the ticket with the fix I proposed here, which draws the title in the same plane with the rest of texts, not following the axis direction as you require.
That's the reason why I posted code you can use to draw the title as you'd expect.
Maybe we could add some extra property to control how the depth axis title should be aligned. We'll study what alternatives we have here.

[axrDegen]

Hi Yeray,

An extra property would be great!
Now I have to put this OnAfterDraw event with extra code all over the place, everywhere where TChart is used in the codebase.
It would be much better to fix this problem in ONE place.
Also, an extra property would not break old code/behavior.
It would be great if the other 2 problems (in the beginning of this thread) could get solved too,

best regards,

Thomas

[Yeray]

Hello Thomas,

An extra property would be great!
Now I have to put this OnAfterDraw event with extra code all over the place, everywhere where TChart is used in the codebase.
It would be much better to fix this problem in ONE place.
Also, an extra property would not break old code/behavior.

I agree and I've added the request to the public tracker #2272. As you can see, there's a number of related things to consider.

It would be great if the other 2 problems (in the beginning of this thread) could get solved too,

I understand.
