Invalid floating point with Chartvalues as singles and Win32

[Marcel Horsthuis]

Hello,

Last Friday I bought the Pro version with source code so I could be able to use singles in the TChart values.
I changed the include file and recompiled the TChart source.

When I fill the series in a Win32 setting I get an Invalid Floating point error.
If I compile the same source as Win64 setting then every thing works fine.

I have made a test program that I attached .

I'm using Delphi 10.1 Berlin on a 64 Bit Pc.

Hope to hear from you soon.

Regards,

Marcel Horsthuis.

[Sandra]

Hello Marcel,

Many thanks for the project and information.

We have reproduced the problem you're experiencing here. We're investigating the causes and we give you an answer as soon as possible.

Thanks in advance

[Yeray]

Hello Marcel,

We've observed you are casting single to TChartValue here:

Code: Select all

      Chart_Test.Series[iSerie].XValues.Value    := TChartValues(F_XArray[iSerie]);

TChartValues is an array of TChartValue, and TChartValue is Double by default (or Single if you changed it in TeeDefs.inc). I'd suggest you to change your F_XArray and F_YArray intermediate variables to be array of array of TChartValue instead of array of array of single.

Code: Select all

    F_XArray : array of array of TChartValue;
    F_YArray : array of array of TChartValue;

[Marcel Horsthuis]

Hello Yeray

I made the changes you suggested but the error still remains.

When debugging the code the error occurs in VLCTee.TeEngine.pas in function XPosValue.
It seems the the result value becomes greater then high(int32).

Regards,

Marcel

[Yeray]

Hello Marcel,

Here my tests with RAD Studio 10.1 Berlin Update 2 in a Windows 10 x64, but always compiling against Win32 target platform:

- Using TEEVALUEDOUBLE (default) define in v2016.19 and defining F_XArray and F_YArray as array of array of single (as it is in your application):
Works fine for me here:


Changing F_XArray and F_YArray to array of array of TChartValue in your application gives the same result.

- Using TEEVALUESINGLE define in v2016.19 and defining F_XArray and F_YArray as array of array of single (as it is in your application):

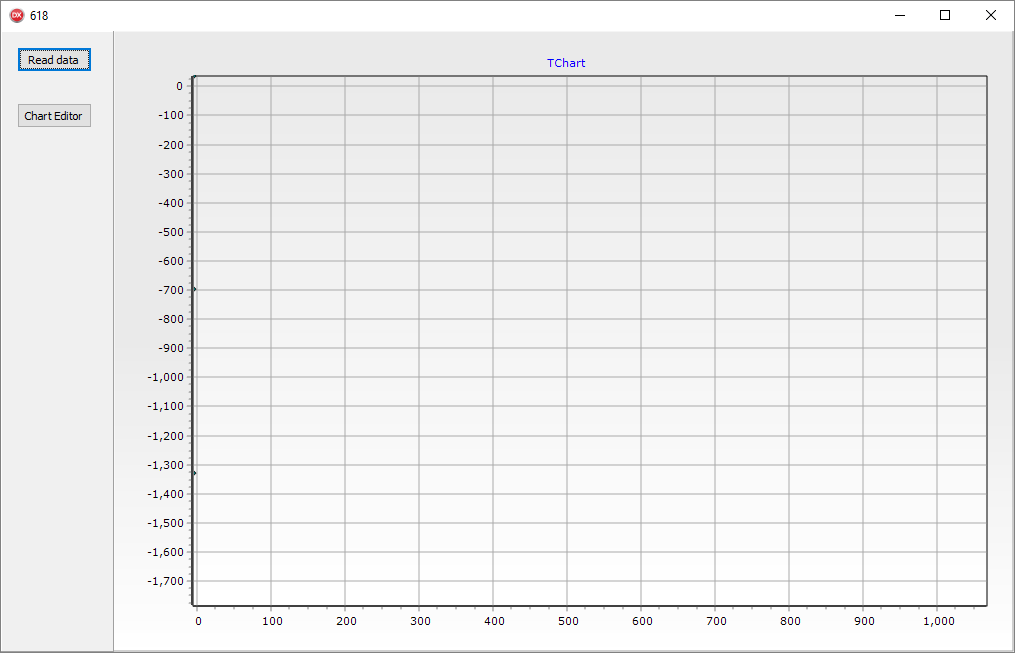

Doesn't crash, but gives me a strange result:


Changing F_XArray and F_YArray to array of array of TChartValue in your application gives the same result.

- Using TEEVALUEEXTENDED define in v2016.19 TeeRecompile crashes with an error in TChartAxis.IncDec method. We've corrected this error for the next maintenance release.
I'll send the latest sources to the mail account you have registered in this forums.

- Using TEEVALUEEXTENDED define with the current sources and defining F_XArray and F_YArray as array of array of single (as it is in your application):
Crashes at the TChartValueList.RecalcStats method in VCLTee.TeEngine.pas.

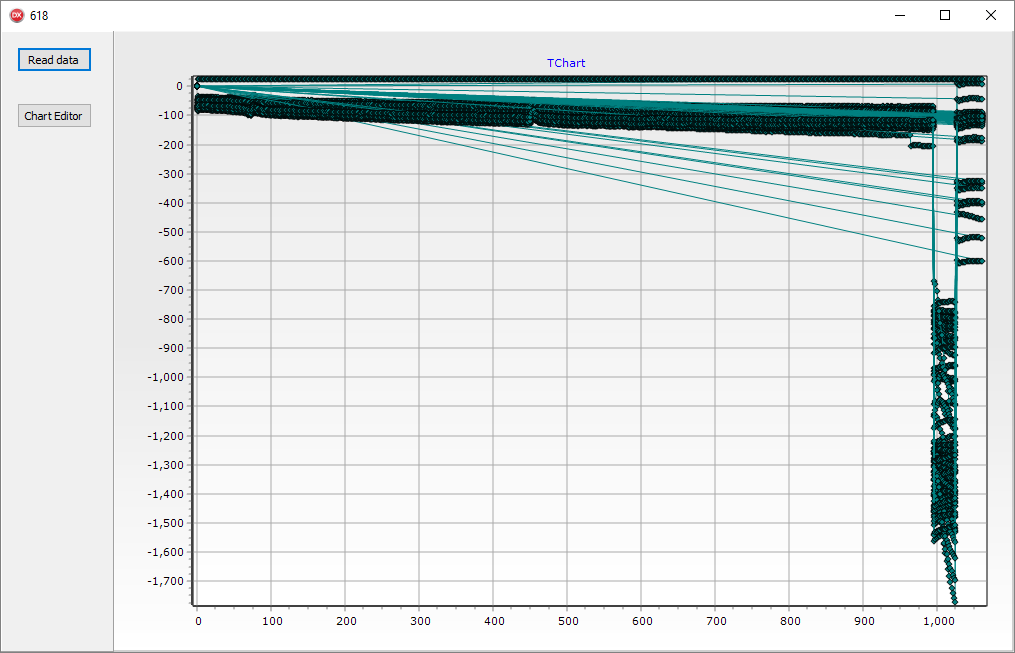

Changing F_XArray and F_YArray to array of array of TChartValue in your application works fine for me here, giving a different result than the result obtained using TEEVALUEDOUBLE above:


Could you please explain what result would you expect to obtain?

[Marcel Horsthuis]

Hello Yeray

Thank you for your solution.
The last graph is the graph is the result we expect to obtain.

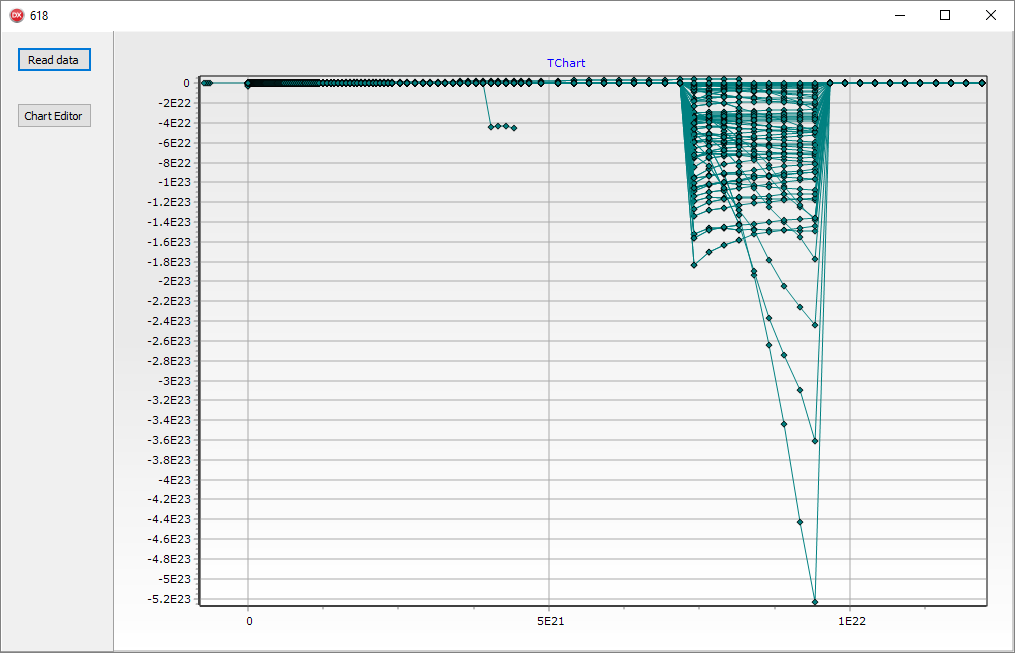

The first graph is the result if you assign a doubles array to a singles ChartValues in lines 104 and 108 of the program

Code: Select all


104      Chart_Test.Series[iSerie].XValues.Value    := TChartValues(F_XArray[iSerie]);
105      Chart_Test.Series[iSerie].XValues.Modified := True;
106     Chart_Test.Series[iSerie].XValues.Count    := ValueCount;
107
108      Chart_Test.Series[iSerie].YValues.Value    := TChartValues(F_YArray[iSerie]);
109      Chart_Test.Series[iSerie].YValues.Modified := True;
110      Chart_Test.Series[iSerie].YValues.Count    := ValueCount;

This is intended to point the X/YValues.Value array of the series to the pointer of the 2 dimensional array by iSerie
So if you have Singles array values pointing to double Chart values then you get a mismatch of points resulting in graph 1.

The graph 2 gives the same result as on my pc. The error occurs if I resize the form.

I'm excited to receive your mail with the solution.

Thank you for your quick support. (working on a deadline right now)

Marcel Horsthuis

[Marcel Horsthuis]

Thank you Yeray for the beta version.

After un-installing the previous version and installing the beta version my test program works fine.

I had some problems compiling the actual program but after changing all the TeeDef.inc files for single TChartValues in the win32 directories the actual program works now also.

Thank you again for the support.

[Yeray]

Hello,

Great, thanks for the feedback!
