Adjusting line height of TRectagleTool

[jens.mertelmeyer]

Hi there.

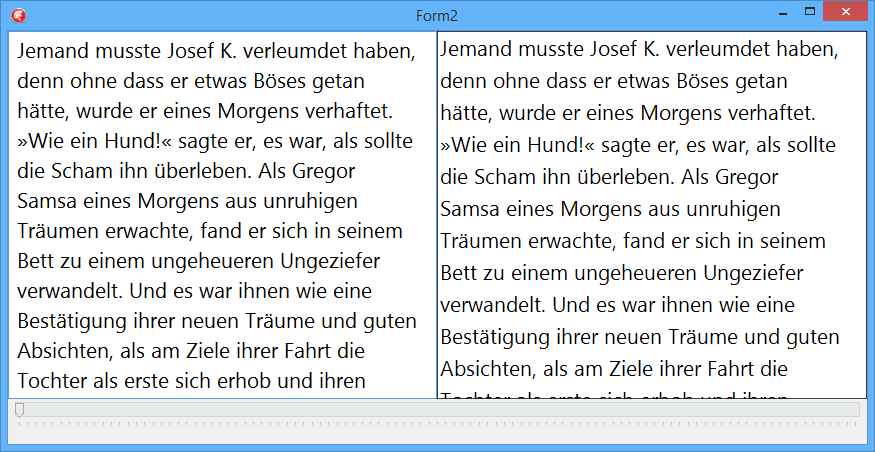

Please have a look at the following image:


On the left you see a normal TMemo straight from the VCL.
On the right, we have a TeeChart with a TRectangleTool on it. By themselves, they both look fine.

However, I am puzzled about the different line height of the TRectangleTool. There is more space between the lines. Is there a way to adjust the "line spacing"? I have found no way.

Many thanks in advance.

[Yeray]

Hello,

Can you please attach here that simple test project?

[jens.mertelmeyer]

Sure. There's not much magic involved:

Code: Select all

procedure TForm3.createTool();
begin
	textRectangle := TRectangleTool.Create(Chart);
	textRectangle.ParentChart := Chart;

	textRectangle.Shape.Font.Assign(Font);
	textRectangle.Shape.Font.Color := TColors.Black; // I have no clue why this is necessary

	textRectangle.Text := Memo1.Lines.Text;
	textRectangle.Bounds := textRectangle.ParentChart.ClientRect;
	textRectangle.Shape.Transparency := 0;

	Chart.Tools.Add(textRectangle);
end;

[Yeray]

Hello,

Thanks for sharing the test project.

This is because TeeChart uses GDIPlus by default since a few releases ago and different techniques are used to calculate the TextHeight.
Adding this to your test project gives a more similar result at both sides:

Code: Select all

type
  TCanvasAccess=class(TTeeCanvas3D);

//...

  Chart.Canvas:=TTeeCanvas3D.Create;
  TCanvasAccess(Chart.Canvas).FontQuality:=fqClearType;

[jens.mertelmeyer]

Yes, they're almost identical now. Thank you.

It still has a pretty different ... padding compared to a TMemo but I think I can sort that out. Thanks again.
