Series Caption and Legend Overlap

[TestAlways]

XE2, TeeChart Pro 2014.11 04.09

In the attached demo, the series caption and legend overlap. If it is vertically enlarged, the problem does not occur--but I don't want to waist vertical spacing.

Is there a way that fixes this that doesn't waist vertical spacing?

Ed Dressel

[Yeray]

Hello,

I've reproduced the problem so I've added it to the public tracker:
http://bugs.teechart.net/show_bug.cgi?id=947

In the meanwhile, you could use a TAnnotationTool instead of using the bottom axis title, and recalculate the margin on the bottom manually. Ie:

Code: Select all

uses Series, Math, TeeTools;

var bottomTitle: TAnnotationTool;

procedure TForm1.FormCreate(Sender: TObject);
var i: Integer;
begin
  Chart1.Align:=alClient;
  Chart1.View3D:=false;
  Chart1.Legend.Visible:=false;

  with Chart1.AddSeries(TBarSeries) as TBarSeries do
  begin
    FillSampleValues();
    Marks.Visible:=false;

    for i:=0 to Count-1 do
      Labels[i]:=FormatFloat('#0.##', YValue[i]) + #13 + 'Extra Line 1' + #13 + 'Extra Line 2';
  end;

  Chart1.Axes.Bottom.Title.Text:='Bottom Axis Title';

  recalcBottomMargin;
end;

procedure TForm1.Chart1Resize(Sender: TObject);
begin
  recalcBottomMargin;
end;

procedure TForm1.recalcBottomMargin;

  function CountOccurences( const SubText: string;
                            const Text: string): Integer;
  begin
    Result := Pos(SubText, Text);
    if Result > 0 then
      Result := (Length(Text) - Length(StringReplace(Text, SubText, '', [rfReplaceAll]))) div  Length(subtext);
  end;

var i, maxHeight, nLines, tmpMargin: Integer;
begin
  Chart1.Draw;

  maxHeight:=0;
  for i:=0 to Chart1[0].Count-1 do
  begin
    nLines:=CountOccurences(#13, Chart1[0].Labels[i]) + 1;
    maxHeight:=Max(maxHeight, nLines*Chart1.Canvas.TextHeight(Chart1[0].Labels[i]));
  end;

  tmpMargin:=maxHeight;

  if Chart1.Axes.Bottom.Title.Visible or Assigned(bottomTitle) then
  begin
    if not Assigned(bottomTitle) then
      bottomTitle:=Chart1.Tools.Add(TAnnotationTool) as TAnnotationTool;

    with bottomTitle do
    begin
      Text:=Chart1.Axes.Bottom.Title.Text;
      Shape.Assign(Chart1.Axes.Bottom.Title);
      Left:=Chart1.Axes.Bottom.IStartPos+(Chart1.Axes.Bottom.IAxisSize div 2) - (Chart1.Canvas.TextWidth(Text) div 2);
      tmpMargin:=Chart1.Axes.Bottom.TickLength+maxHeight+Chart1.Canvas.TextHeight(Text);
      Top:=Chart1.Axes.Bottom.PosAxis+tmpMargin;
      Chart1.MarginBottom:=tmpMargin;
    end;

    Chart1.Axes.Bottom.Title.Visible:=false;
  end;

  Chart1.MarginUnits:=muPixels;
  Chart1.MarginBottom:=tmpMargin;
end;

[TestAlways]

Thank you for your response.

I merged your code with my demo and the problem still occurs--the problem for me was legend overlap with captions. See the attached demo.

Is there a work around?

Ed Dressel

[Yeray]

Hi Ed,

You can do something similar than what I was doing, setting the legend to be in the bottom though a custom position and adding the necessary margin to the bottom:

Code: Select all

constructor TForm1.Create(aOwner: TComponent);
var
  I: Integer;
  lValue: Double;
  lCaption: string;
begin
  inherited;
  FAnnTool := nil;
  lValue := 100;
  for I := 1 to 5 do
  begin
    lValue := lValue * (1 + (Random * 0.2));
    lCaption := inttostr(I);
    if I = 3 then
      lCaption := lCaption + #13 + 'Extra Caption Line';
    Series1.AddBar(lValue, lCaption, clTeeColor);
  end;

  chrtSavingsNeeded.Axes.Bottom.Title.Text:='Bottom Axis Title';

  RecalcBottomMargin;
end;

procedure TForm1.RecalcBottomMargin;
  function CountOccurences( const aSubText, aText: string): Integer;
  begin
    Result := Pos(aSubText, aText);
    if Result > 0 then
      Result := (Length(aText) - Length(StringReplace(aText, aSubText, '', [rfReplaceAll]))) div  Length(aSubtext);
  end;

var i, maxHeight, nLines, tmpMargin, tmpHeight: Integer;
begin
  chrtSavingsNeeded.Draw;

  chrtSavingsNeeded.Canvas.Font.Assign(chrtSavingsNeeded.Axes.Bottom.Title.Font);
  maxHeight:=0;
  for i:=0 to chrtSavingsNeeded[0].Count-1 do
  begin
    nLines:=CountOccurences(#13, chrtSavingsNeeded[0].Labels[i]) + 1;
    maxHeight:= Max(maxHeight, nLines*chrtSavingsNeeded.Canvas.TextHeight(chrtSavingsNeeded[0].Labels[i]));
  end;

  tmpMargin:=maxHeight+chrtSavingsNeeded.Axes.Bottom.TickLength;

  if chrtSavingsNeeded.Axes.Bottom.Title.Visible or Assigned(FAnnTool) then
  begin
    if not Assigned(FAnnTool) then
      FAnnTool:=chrtSavingsNeeded.Tools.Add(TAnnotationTool) as TAnnotationTool;

    with FAnnTool do
    begin
      Text := chrtSavingsNeeded.Axes.Bottom.Title.Text;
      Shape.Assign(chrtSavingsNeeded.Axes.Bottom.Title);
      Left := chrtSavingsNeeded.Axes.Bottom.IStartPos+(chrtSavingsNeeded.Axes.Bottom.IAxisSize div 2) - (chrtSavingsNeeded.Canvas.TextWidth(Text) div 2);
      Top := chrtSavingsNeeded.Axes.Bottom.PosAxis+tmpMargin;
      tmpMargin := tmpMargin+chrtSavingsNeeded.Canvas.TextHeight(Text);
    end;

    chrtSavingsNeeded.Axes.Bottom.Title.Visible:=false;
  end;

  if chrtSavingsNeeded.Legend.Visible and (chrtSavingsNeeded.Legend.Alignment = laBottom) then
  begin
    chrtSavingsNeeded.Legend.CustomPosition:=true;
    chrtSavingsNeeded.Legend.Left:=(chrtSavingsNeeded.Width div 2) - (chrtSavingsNeeded.Legend.Width div 2);
    tmpHeight:=chrtSavingsNeeded.Legend.Height;
    chrtSavingsNeeded.Legend.Top:=chrtSavingsNeeded.Axes.Bottom.PosAxis+tmpMargin;
    tmpMargin:=tmpMargin+tmpHeight;
  end;

  chrtSavingsNeeded.MarginUnits:=muPixels;
  chrtSavingsNeeded.MarginBottom:=tmpMargin;
end;
procedure TForm1.Resize;
begin
  inherited;
  RecalcBottomMargin;
end;

[TestAlways]

Thank you for your responses.

If I use the Footer.Text property for my charts sub-title, the overlap still occurs. (I tried to change the code you wrote but could not get it to work with my new demo).

Ed Dressel

[Narcís]

Hi Ed,

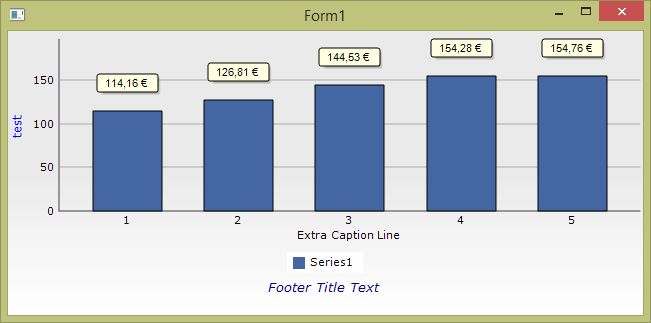

With the modifications David Berneda made to the code it's working fine now:


So you may expect this being fixed in the next maintenance release. If you are interested, you can also check David's new beta version here.

[TestAlways]

It's difficult to release beta code to my end users--it doesn't go over very well when it doesn't work. How close is this to being a final release?

[Narcís]

Hello Ed,

How close is this to being a final release?

We expect this version being out in about one month.
