Ternary Series Assigning a Color

[DataInspector]

How do you assign a single color per series on a ternary plot? Do I need to set it programmatically, or can I sent it to choose colors in the editor.

My code now looks like this

Code: Select all

  NameOld := NameNew;
  TriPlotSeries := TTernarySeries.Create(Self);
  TriPlotSeries.ParentChart := ChartTriPlot;
  TriPlotSeries.Title := NameNew;
  TriPlotSeries.pointer.Style := psDonut;
  TriPlotSeries.pointer.Size := 10;
  TriPlotSeries.Pointer.Visible := True;
  TriPlotSeries.VertexTitles[0].Text := cxLookupComboBoxTriAnal1.EditText;
  TriPlotSeries.VertexTitles[1].Text := cxLookupComboBoxTriAnal2.EditText;
  TriPlotSeries.VertexTitles[2].Text := cxLookupComboBoxTriAnal3.EditText;

[Yeray]

Hello,

Creating 3 ternary series, each one using it's own color, by code:

Code: Select all

uses TeeTernary;

procedure TForm1.FormCreate(Sender: TObject);
var i: Integer;
begin
  Chart1.Walls.Back.Hide;

  for i:=0 to 2 do
    with TTernarySeries(Chart1.AddSeries(TTernarySeries)) do
    begin
      FillSampleValues;
      ColorEachPoint:=False;
      UseColorRange:=False;
      UsePalette:=False;
    end;
end;

Creating 3 ternary series, each one using it's own color, at design-time.

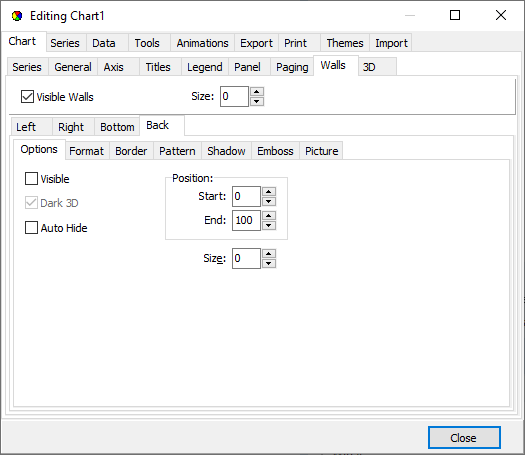

- Disable the Back wall visibility:

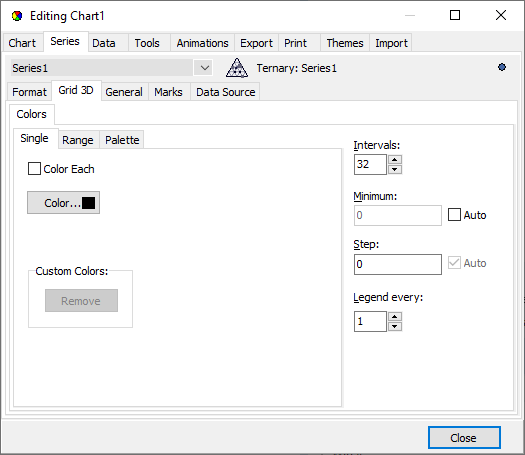

- Disable ColorEach for all the 3 Ternary series:

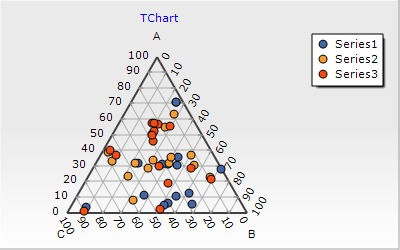

Here is what I get:
