How to display Greek symbols on axis labels?

[Geocentrix]

I am creating scatter plots in code and want to display the following label on the x-axis:

Rotation <THETA> (degrees)

where <THETA> is the Greek capital symbol theta, whose Unicode value is 0x4a.

Is there a way of doing this IN CODE?

[Yeray]

Hello,

I'm not sure if you want to draw it in the axis title or in all the axis labels.
Anyway, the base of the code would be this:

Code: Select all

procedure TForm1.Chart1AfterDraw(Sender: TObject);
{$IFNDEF CLX}
var UnicodeString : WideString;
{$ENDIF}
begin
  inherited;

{$IFNDEF CLX}

  SetLength(UnicodeString, 1);
  UnicodeString[1] := WideChar($0398);

  with Chart1.Canvas.Font do
  begin
    Size:=15;
    Name:='Arial Unicode MS';
  end;

  SetBkMode(Chart1.Canvas.Handle, TRANSPARENT);

  TextOutW(Chart1.Canvas.Handle, 10, 10, PWideChar(UnicodeString),
                                         Length(UnicodeString));

{$ENDIF}
end;

[Geocentrix]

Thanks, that work just fine.

It was even simpler - by setting the axis->Title->FontName to ""Arial Unicode MS" I get the required symbol.

Presumably, if I want to display symbols with subscripts, I would need to draw the title myself, including the subsripts?

[Yeray]

Hello,

You could use ttfHtml font format as follows:

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  Chart1.Title.Font.Size:=18;
  Chart1.Title.Font.Name:='Arial Unicode MS';
  Chart1.Title.TextFormat:=ttfHtml;
  Chart1.Title.Text.Text:='Theta: ' + WideChar($0398) + '<sub>subscript</sub>' + '<sup>superscript</sup>';
end;


[Geocentrix]

Yeray

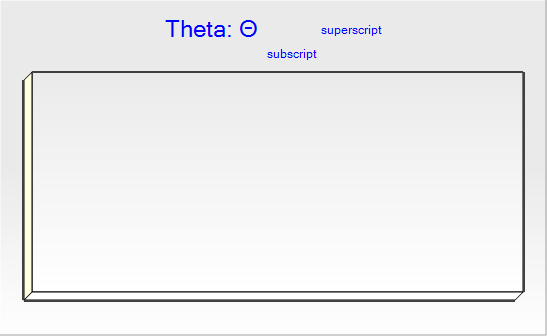

Thanks for the further suggestions. That is (almost) what I want...

Both the subscript and the superscript appear to be too low relative to the regular text. Is there any way to control that?

[Geocentrix]

What I'm really looking for is this...

[Yeray]

Hello,

This is an issue already in the public tracker (#1907) I'm currently revising.

[Geocentrix]

Yeray

Thanks for the additional info.

Looking at the proposed fix in the database, I would like to make the following commets:

• The upwards and downwards offsets are MUCH better

• However, there should be lest space between the end of the regular text and the beginning of the sub/superscript

Will the fix make it in the next release?

Andrew

[Yeray]

Hello,

I'm not sure because I've just seen this is breaking other html tags such as <big> and <small>
So we should revise it.

[Yeray]

Andrew,

• However, there should be lest space between the end of the regular text and the beginning of the sub/superscript

In general we need to calculate the text size with a margin.
This is related to this old issue.
