Dashed line using ExtCreatePen not working

[tremoflo]

Hi,
I am trying to draw a line using a user-defined pen Style but the line prints straight.

Code: Select all

procedure TForm1.Button1Click(Sender: TObject);
var
  LLogBrush : tLogBrush;
  LUserstyle : array[0..3] of Double;
begin

  Chart1.Series[0].Visible := true;
  TLineSeries(Chart1.Series[0]).Pointer.Visible := false;

  LUserstyle[0]:= 8;
  LUserstyle[1]:= 4;
  LUserstyle[2]:= 8;
  LUserstyle[3]:= 4;

  Chart1.Canvas.Pen.Handle := ExtCreatePen(PS_GEOMETRIC or PS_USERSTYLE,
                    2, LLogBrush, 4, @LUserstyle);
  Chart1.Canvas.Line(0,150,300,150);
end;

What am I doing wrong?

Thanks
Kim

[Yeray]

Hello,

I'm getting the same result using the same code (I call MoveTo and LineTo instead of just Line) in a TPaintBox so it doesn't seem anything related to TeeChart, does it?

[tremoflo]

You are right. That might then be a question to Embarcadero. if you found a solution on your side, let me know.

[tremoflo]

Hi Yeray,

I tried the code again, changed the array of LUserStyle to DWORD. Now it's painting the dashedline on the PaintBox but NOT on the Teechart!
Any idea?

Code: Select all

var
  LLogBrush : tLogBrush;
  LUserstyle : array[0..3] of DWORD;
begin

  Chart1.Series[0].Visible := true;
  TLineSeries(Chart1.Series[0]).Pointer.Visible := false;

  LUserstyle[0]:= 12;
  LUserstyle[1]:= 8;
  LUserstyle[2]:= 12;
  LUserstyle[3]:= 4;

  LLogBrush.lbStyle := BS_Solid;
  LLogBrush.lbColor := clBlue;
  LLogBrush.lbHatch := 0;

  Chart1.Canvas.Pen.Handle := ExtCreatePen(PS_GEOMETRIC or PS_USERSTYLE,
                    2, LLogBrush, 4, @LUserstyle);
  Chart1.Canvas.MoveTo(10,10);
  Chart1.Canvas.LineTo(100,100);


  PaintBox1.Canvas.Pen.Handle := ExtCreatePen(PS_GEOMETRIC or PS_USERSTYLE,
                    2, LLogBrush, 4, @LUserstyle);

  PaintBox1.Canvas.MoveTo(10,10);
  PaintBox1.Canvas.LineTo(100,100);
end;

[Yeray]

Hello,

I see it works fine in GDI, not in GDIPlus:

Code: Select all

uses TeCanvas;
  //...
  Chart1.Canvas:=TTeeCanvas3D.Create;

[tremoflo]

Hi,

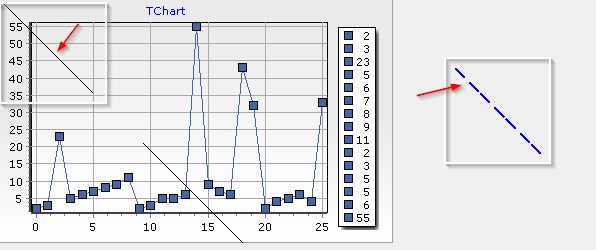

I changed the canvas to GDI, but still printing a solid line without any color. With GDIPlus, it printed the blue colored line. See attached picture: the blue dashed line is from the paintbox which prints well.

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  Chart1.Canvas := TTeeCanvas3D.Create;
end;

...
  Chart1.Canvas.Pen.Handle := ExtCreatePen(PS_GEOMETRIC or PS_USERSTYLE,
                    2, LLogBrush, 4, @LUserstyle);
  Chart1.Canvas.MoveTo(10,10);
  Chart1.Canvas.LineTo(100,100);
  Chart1.Canvas.Line(150,150, 300,300);

Do you have a sample project code that you have tested you want to share?

[Yeray]

Hello,

I'm sorry, I'm not sure how I tested it. Now I get the same result than you.
TTeeCanvas3D fires DoChangedPen when you modify the Pen.Handle and this recreates the Handle. However, you can get it working as you want by inheriting TTeeCanvas3D and overriding DoChangedPen as follows:

Code: Select all

type TMyTeeCanvas3D = class(TTeeCanvas3D)
  protected
    procedure DoChangedPen; override;
  end;

procedure TMyTeeCanvas3D.DoChangedPen;
begin
  ReferenceCanvas.Pen.Assign(Pen);
end;

procedure TForm1.FormCreate(Sender: TObject);
begin
  Chart1.Canvas := TMyTeeCanvas3D.Create;
end;

Find the test project here:

testDashedExtCreatePen.zip

(83.57 KiB) Downloaded 853 times

[tremoflo]

Thanks Yeray!

in fact, it also works by just assigning ReferenceCanvas.Pen after the assigning the new Pen.Handle as below.

Code: Select all

  Chart1.Canvas.Pen.Handle := ExtCreatePen(PS_GEOMETRIC or PS_USERSTYLE,
                    2, LLogBrush, 4, @LUserstyle);
  Chart1.Canvas.ReferenceCanvas.Pen.Assign(Chart1.Canvas.Pen);
  Chart1.Canvas.MoveTo(10,10);
  Chart1.Canvas.LineTo(100,100);

[Yeray]

Hello,

Agh, of course! Thanks for sharing!
