Dynamically positioning a TArrowTool

[Metman]

Hi

I've searched your archives but find no reference to the TArrowTool.

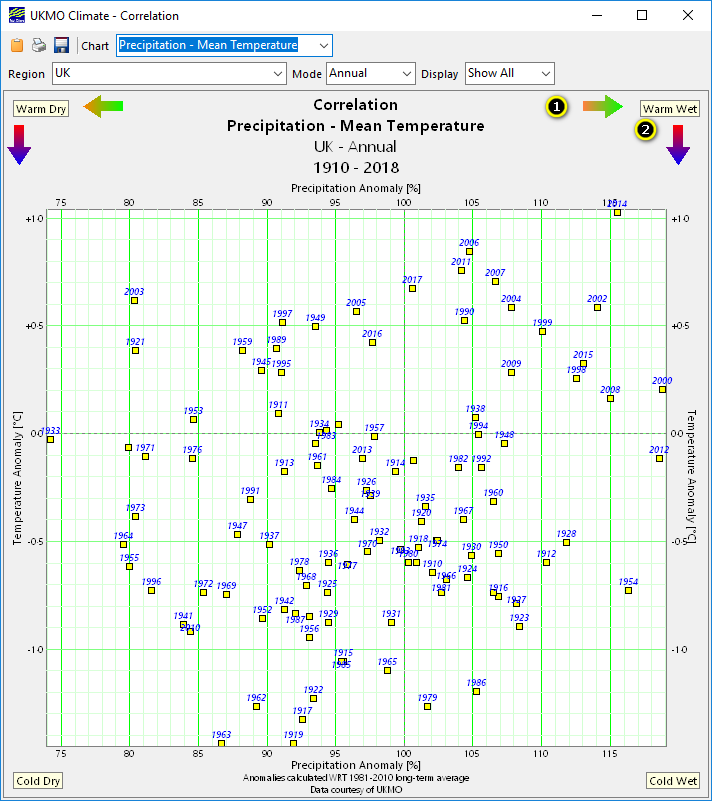

I have placed a number of arrow tools in a chart like this:-


On resizing the chart I want the arrows to remain right-aligned and I though that this code would do it but it causes an exception.

Code: Select all

procedure TfmCorrelationGraph.ChartAfterDraw(Sender: TObject);
var
  pt1 : TPointXY;
  pt2 : TPointXY;
begin
  pt1.X:=Chart.Width-120;
  pt1.Y:=16;
  pt2.X:=Chart.Width-80;
  pt2.Y:=16;

  ChartTool8.FromPoint:=pt1;
  ChartTool8.ToPoint:=pt2;
end;

Is it possible?

Bruce.

[Yeray]

Hello Bruce,

You can use just this:

Code: Select all

procedure TfmCorrelationGraph.ChartAfterDraw(Sender: TObject);
begin
  ChartTool8.FromPoint.Point:=Point(Chart1.Width-120, 16);
  ChartTool8.ToPoint.Point:=Point(Chart1.Width-80, 16);
end;
