Multi left axes

[PoLabs]

Hi,

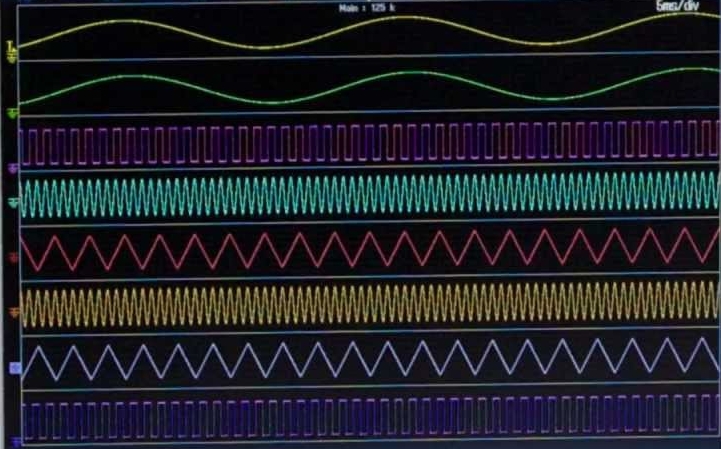

I attached an image of chart I would like to create. There are 8 signals and each has it's own left axis. All 8 signals and axes are on the same chart. Is it possible to do that with teechart? I tried to add axes and move them by changing position properties but the end result was quite bad. Can you help me with that, please?

Thank you in advance.

Regards,
Nix

[Yeray]

Hello Nix,

Yes, it's possible.

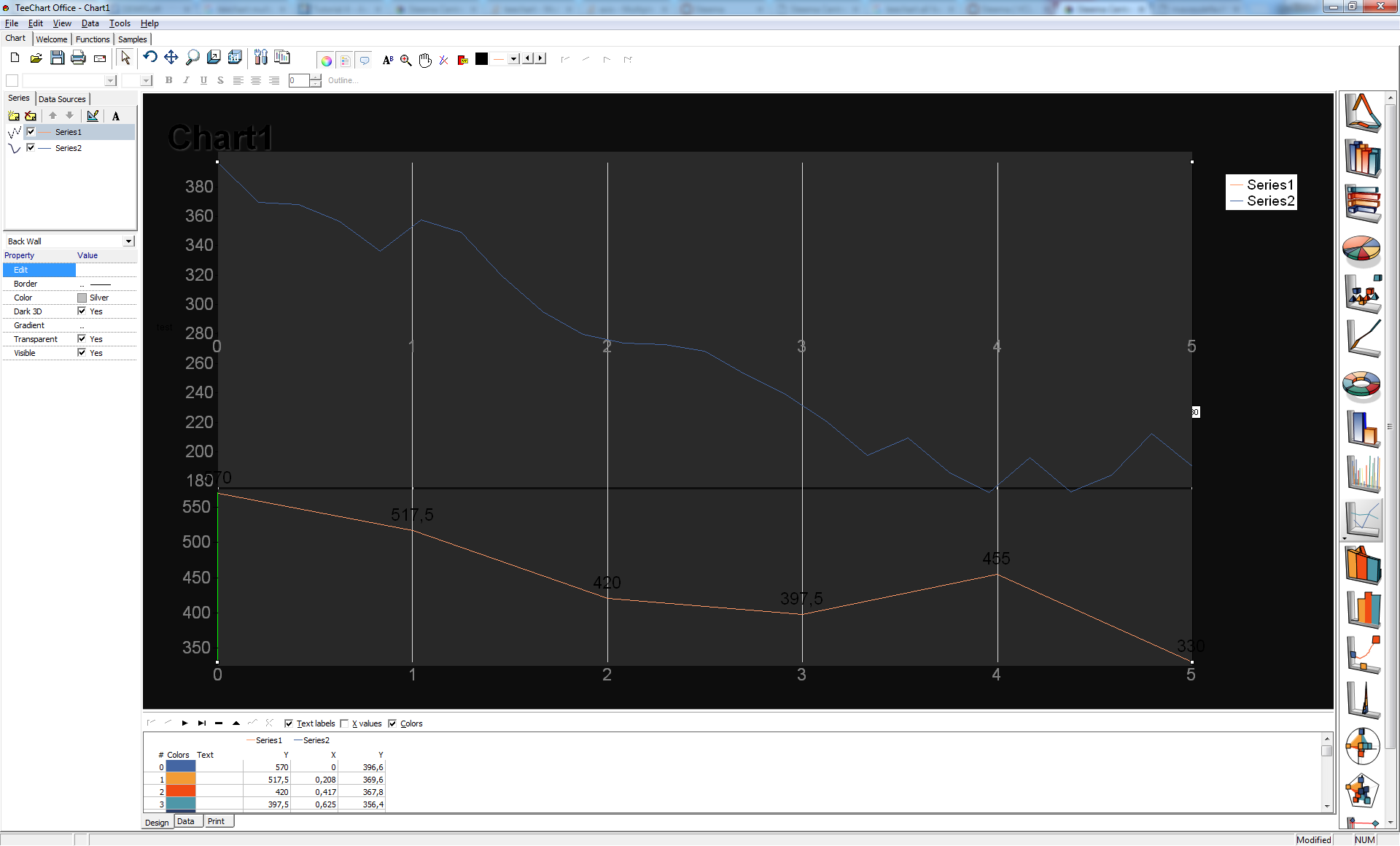

I'm not sure to understand what don't you like from what you are getting; I see you have two series with a vertical axis assigned to each one. If you do the same for 8 series and 8 axes you should have the desired result.

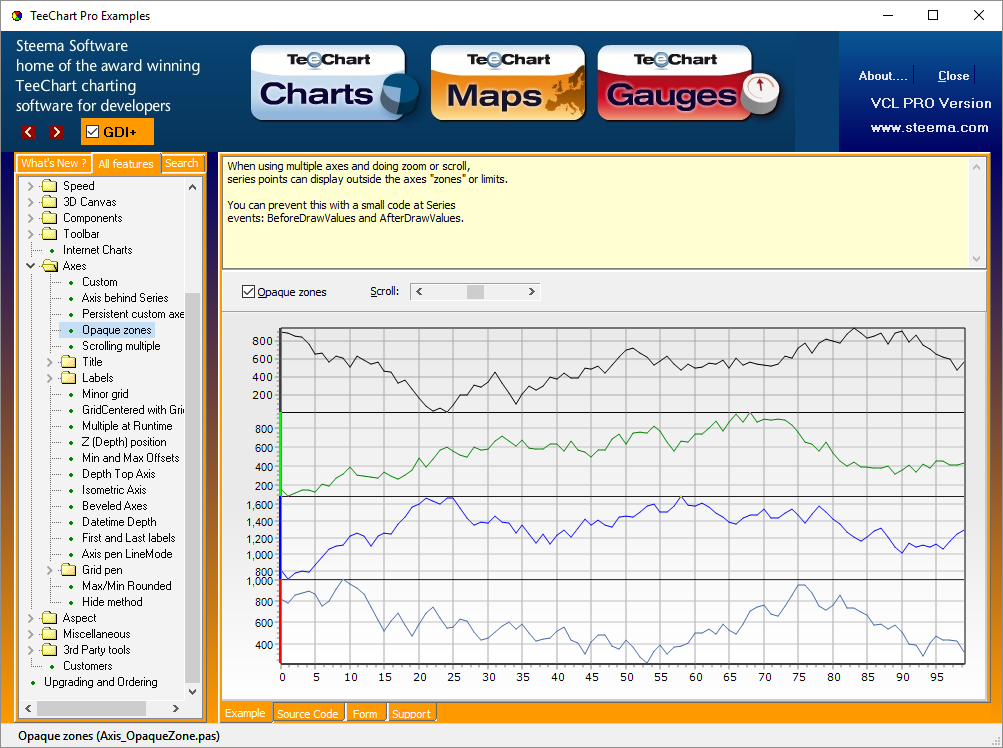

You can also see the Opaque Zones demo:


[PoLabs]

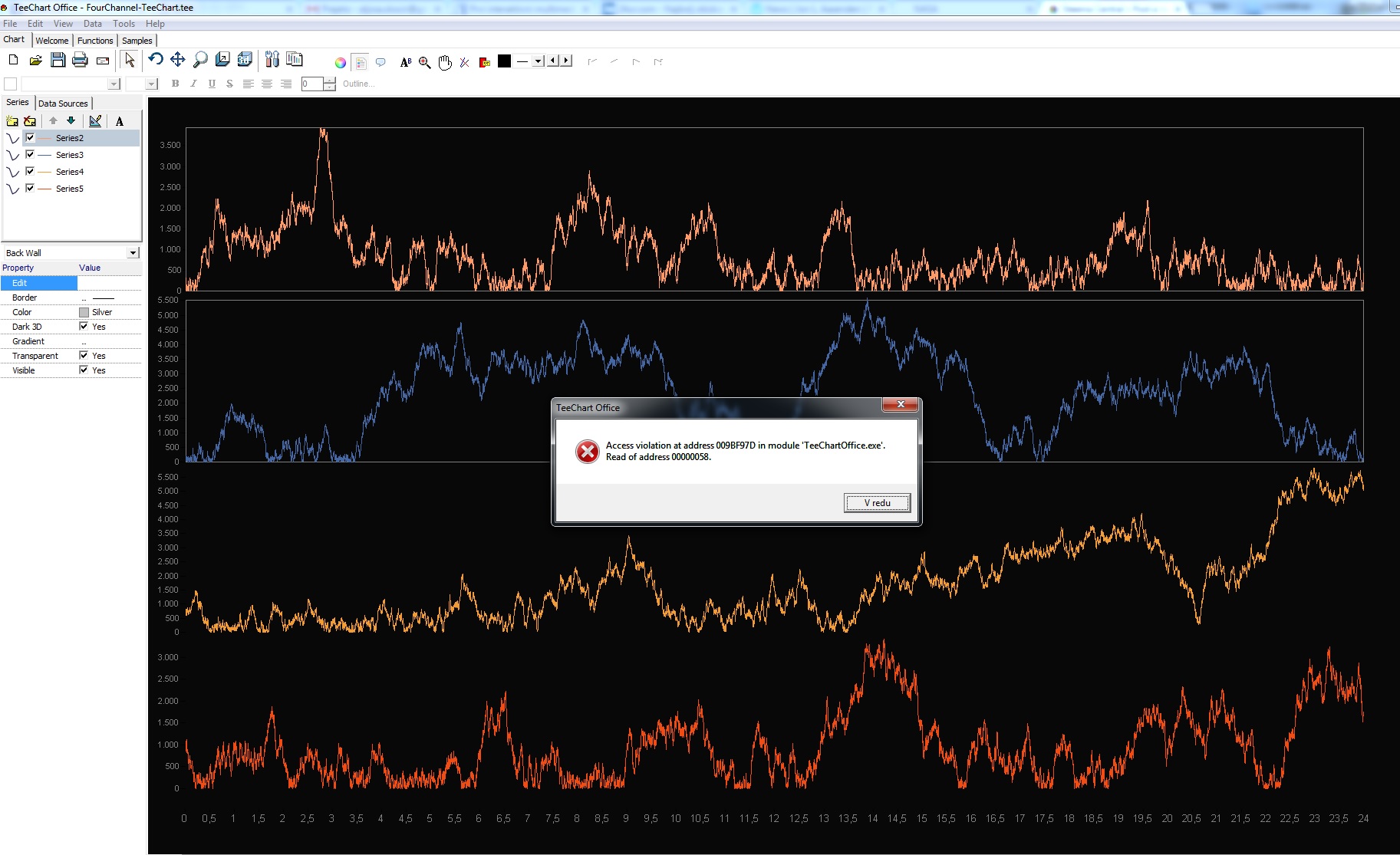

I managed to get expected result. At first I was doing it wrong because I didn't use TColorBand but I was manipulating grid properties. Now I see how easy is that with adding series to properly positioned axes and using tcolorband on each axis. I am getting access violation (see attachment) but nevermind... just needed to know if this is possible and how to do it. I don't expect problems with my app. I have license for sources and there are no examples. Where can I download TeeChartPro Examples from?

By the way... TeeChart and other controls are really awsome. I am using it for more than 8 years now and I am very pleased with them. Not to mention great support we always get from you. Keep on doing great job guys!

[Yeray]

Hi,

I managed to get expected result. At first I was doing it wrong because I didn't use TColorBand but I was manipulating grid properties. Now I see how easy is that with adding series to properly positioned axes and using tcolorband on each axis.

I'm glad to hear you fond how to make it work as you wished!

I am getting access violation (see attachment) but nevermind... just needed to know if this is possible and how to do it. I don't expect problems with my app.

If you can reduce that to a simple example project we can run as-is to reproduce the problem here we'll be pleased to take a look at it.

I have license for sources and there are no examples. Where can I download TeeChartPro Examples from?

You are right, the sources come without the documentation and examples. However, sourcecode license gives access to the binary version so we use to recommend to install the binary version before the source code version.
An alternative would be to download the precompiled demo here and use the online documentation here.

By the way... TeeChart and other controls are really awsome. I am using it for more than 8 years now and I am very pleased with them. Not to mention great support we always get from you. Keep on doing great job guys!

Thanks for the kind words!
