getImageMode() never called!

[znakeeye]

So how would you get a tiled/centered image on the panel/wall?

[Yeray]

Hi Kristoffer,

getImageMode() never called!

It's a public function you can use to check the value of the imageMode property. Internally, it is directly used the imageMode property in the

Code: Select all

chartEvent

.

So how would you get a tiled/centered image on the panel/wall?

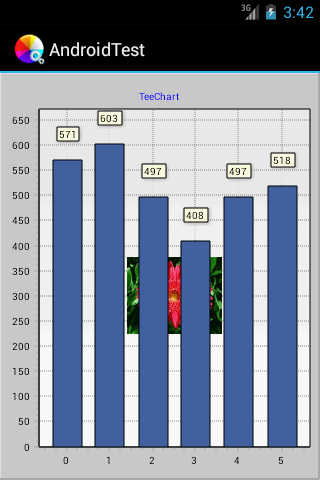

Here you have an example of how to use the CENTER mode:

Code: Select all

	private void initializeChart() {
		tChart1.getAspect().setView3D(false);
		tChart1.getLegend().setVisible(false);

		Bar bar1 = new Bar(tChart1.getChart());
		bar1.fillSampleValues();

		checkExternalStorage();

		Image im = null;
		if (mExternalStorageAvailable) {
			if (mExternalStorageWriteable) {
				final File ExtPath = new File(Environment.getExternalStorageDirectory().getAbsolutePath() + File.separator + "Download");
				ExtPath.mkdirs();
				String path = ExtPath.getAbsolutePath() + File.separator + "flower.jpg";
				im = new Image(path);
			}
		}

		ChartImage chIm = new ChartImage(tChart1.getChart());
		chIm.setImage(im);
		chIm.setImageMode(ImageMode.TILE);
		//chIm.setImageMode(ImageMode.CENTER);
	}

	private boolean mExternalStorageAvailable = false;
	private boolean mExternalStorageWriteable = false;
	private void checkExternalStorage() {
		final String state = Environment.getExternalStorageState();

		if (Environment.MEDIA_MOUNTED.equals(state) || Environment.MEDIA_SHARED.equals(state)) {
			// We can read and write the media
			mExternalStorageAvailable = mExternalStorageWriteable = true;
		} else if (Environment.MEDIA_MOUNTED_READ_ONLY.equals(state)) {
			// We can only read the media
			mExternalStorageAvailable = true;
			mExternalStorageWriteable = false;
		} else {
			// Something else is wrong. It may be one of many other states, but
			// all we need
			// to know is we can neither read nor write
			mExternalStorageAvailable = mExternalStorageWriteable = false;
		}
	}


However, I'm afraid the TILE and STRETCH modes aren't implemented yet. I've added it to the wish list to be implemented in next releases (TJ71016548).
