Query related to rectangle tool children.

[amol]

Hi,

We are currently using Active X 2018. We have added a rectangle tool and are able to add its text, font and children etc. But we are unable to add text to its children.

Following is the code we are currently using

Code: Select all

ui->mChart->Tools()->Add(tcRectangle);
ui->mChart->Tools()->Items(0)->asRectangle()->SetText("Technology - Software - Infrastructure");
ui->mChart->Tools()->Items(0)->asRectangle()->Shape()->Font()->SetSize(12);
ui->mChart->Tools()->Items(0)->asRectangle()->Shape()->SetTransparency(30);
ui->mChart->Tools()->Items(0)->asRectangle()->SetAllowDrag(false);
ui->mChart->Tools()->Items(0)->asRectangle()->SetAllowResize(false);
ui->mChart->Tools()->Items(0)->asRectangle()->SetAutoSize(true);

ui->mChart->Tools()->Items(0)->asRectangle()->Shape()->Children()->Add();
ui->mChart->Tools()->Items(0)->asRectangle()->Shape()->Children()->Item(0)->Shape()->Font()->SetSize(16);

Please guide us as to how we could add text to the children elements too. Our target is to view different text with different font size and colors.

Regards,
Amol

[Yeray]

Hello Amol,

You need to cast the Shape child to TCustomTextShape to access the Text property. Ie, this in Delphi:

Code: Select all

procedure TForm1.FormCreate(Sender: TObject);
begin
  with TRectangleTool(Chart1.Tools.Add(TRectangleTool)) do
  begin
    Text:='Rectangle Tool';
    Shape.Transparency:=10;
    Shape.Font.Color:=clRed;
    Shape.Font.Style:=Shape.Font.Style+[fsBold];
    AutoSize:=True;
    Left:=100;
    Top:=100;

    with Shape.Children.Add do
    begin
      Shape.Font.Color:=clGreen;
      TCustomTextShape(Shape).Text:='Children';
    end;
  end;
end;

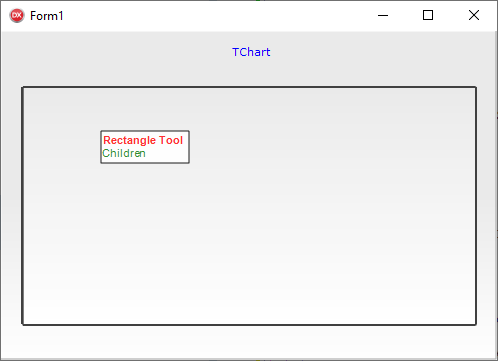

Sorry, I thought it was VCL. Let me check if this property is mapped in ActiveX.

[Yeray]

Hello,

Indeed the Text property isn't accessible by code. I've added i to the public tracker:
http://bugs.teechart.net/show_bug.cgi?id=2330
