How to create profile section?

[zrandlbs]

Hi,Yeray
I used colorGrid to make a map.Now I want to draw a line on colorgrid and to create a profile section.Would you give me any suggestions?I do not know how to get the coordinates and values of the intersection points between the line and colorgrid.
Thanks,
Cheers,
Robinson

[Yeray]

Hi robinson,

I used colorGrid to make a map.Now I want to draw a line on colorgrid and to create a profile section.Would you give me any suggestions?I do not know how to get the coordinates and values of the intersection points between the line and colorgrid.

I'm not sure to understand what problem have you found when trying to do it.

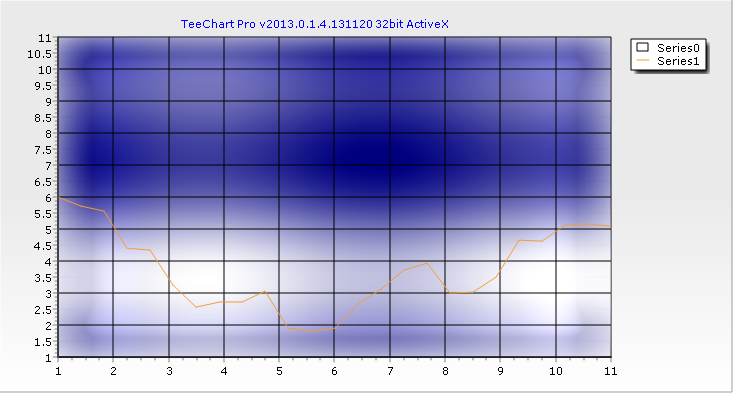

I've been able to draw a ColorGrid and a Line series in the same chart:

Code: Select all

Private Sub Form_Load()
  TChart1.Header.Text.Clear
  TChart1.Header.Text.Add TChart1.Version
  TChart1.Aspect.View3D = False

  TChart1.AddSeries scColorGrid
  TChart1.Series(0).FillSampleValues

  TChart1.AddSeries scLine
  TChart1.Series(1).FillSampleValues
End Sub


[zrandlbs]

Hi,Yeray,
Thank for your quick reply.I used colorgrid to generate an image that the grid color is concentration of an element.Now I need to allow users to draw a line on my image to generate a section along the line. I need to get values of the colors and coordinates on the line.
Because the line is drawn by users,so I think I should use "draw line" tool.

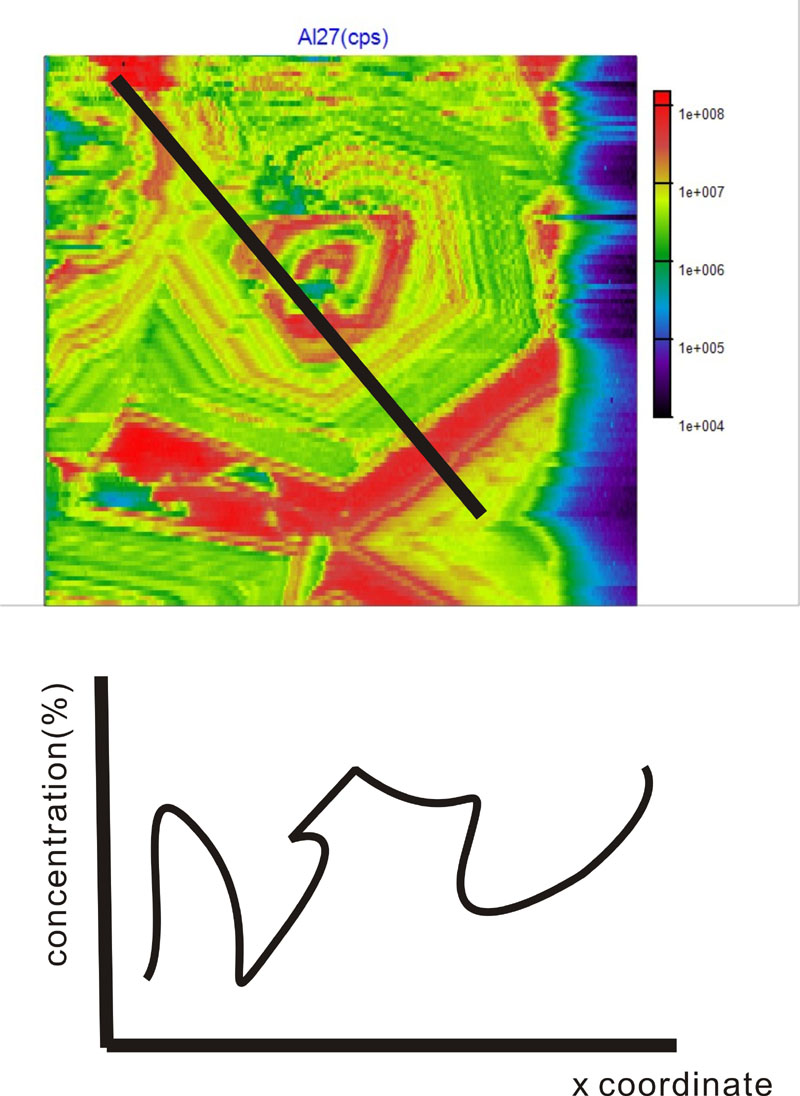

I think the key problem is how to get the coordinates of crossing points between the drawn line and my image.I drew a picture for you. In my picture,Y axis is concentration of Al and x axis is distance of the drawn line on colorgrid.
Thanks,
Good luck!
Robinson

[Yeray]

Hi Robinson,

Thank for your quick reply.I used colorgrid to generate an image that the grid color is concentration of an element.Now I need to allow users to draw a line on my image to generate a section along the line. I need to get values of the colors and coordinates on the line.
Because the line is drawn by users,so I think I should use "draw line" tool.
I think the key problem is how to get the coordinates of crossing points between the drawn line and my image.I drew a picture for you. In my picture,Y axis is concentration of Al and x axis is distance of the drawn line on colorgrid.

The Clicked(X, Y) function of the ColorGrid will give you the index of the cell under a given pixel. However, you still have to calculate the list of pixels in that line, and I'm afraid you should do it manually. I've taken the code from here to make a simple example. Take it as a start point:

Code: Select all

Private Sub Command1_Click()
  checkLine
End Sub

Private Sub Form_Load()
  TeeCommander1.ChartLink = TChart1.ChartLink
  TChart1.Header.Text.Clear
  TChart1.Header.Text.Add TChart1.Version
  TChart1.Aspect.View3D = False

  TChart1.AddSeries scColorGrid
  TChart1.Series(0).FillSampleValues

  TChart1.Tools.Add tcDrawLine
  TChart1.Tools.Items(0).asDrawLine.EnableDraw = False

  TChart1.Tools.Items(0).asDrawLine.AddLine 0, 0, 5, 5

  'TChart1.Environment.InternalRepaint
  'MsgBox TChart1.Tools.Items(0).asDrawLine.Lines.Items(0).EndPos.x
End Sub

Private Sub checkLine()
  Dim i, X, tmp As Integer
  Dim X0, Y0, X1, Y1 As Integer

  X0 = TChart1.Axis.Bottom.CalcXPosValue(TChart1.Tools.Items(0).asDrawLine.Lines.Items(0).StartPos.X)
  Y0 = TChart1.Axis.Left.CalcYPosValue(TChart1.Tools.Items(0).asDrawLine.Lines.Items(0).StartPos.Y)
  X1 = TChart1.Axis.Bottom.CalcXPosValue(TChart1.Tools.Items(0).asDrawLine.Lines.Items(0).EndPos.X)
  Y1 = TChart1.Axis.Left.CalcYPosValue(TChart1.Tools.Items(0).asDrawLine.Lines.Items(0).EndPos.Y)

  Dim steep As Boolean
  steep = Math.Abs(Y1 - Y0) > Math.Abs(X1 - X0)
  If steep Then
    tmp = X0
    X0 = Y0
    Y0 = tmp

    tmp = X1
    X1 = Y1
    Y1 = tmp
  End If

  If X0 > X1 Then
    tmp = X0
    X0 = X1
    X1 = tmp

    tmp = Y0
    Y0 = Y1
    Y1 = tmp
  End If

  Dim deltax As Integer
  deltax = X1 - X0
  Dim deltay As Integer
  deltay = Math.Abs(Y1 - Y0)
  Dim ERR As Integer
  ERR = deltax \ 2
  Dim ystep As Integer
  Dim Y As Integer
  Y = Y0
  If Y0 < Y1 Then
    ystep = 1
  Else
    ystep = -1
  End If

  For X = X0 To X1
    If steep Then
      List1.AddItem Y & " " & X
    Else
      List1.AddItem X & " " & Y
    End If
    ERR = ERR - deltay
    If ERR < 0 Then
      Y = Y + ystep
      ERR = ERR + deltax
    End If

    For i = 0 To TChart1.Series(0).Count - 1
      tmp = TChart1.Series(0).Clicked(X, Y)
      If tmp > -1 Then
        TChart1.Series(0).PointColor(tmp) = vbRed
      End If
    Next i
  Next
End Sub
