X axis labels issue with multiple series

[HHYen]

Hello.

We upgrade tee chart from TeeChart2010.0.0.3ActiveX to TeeChart2011.0.0.4ActiveX.

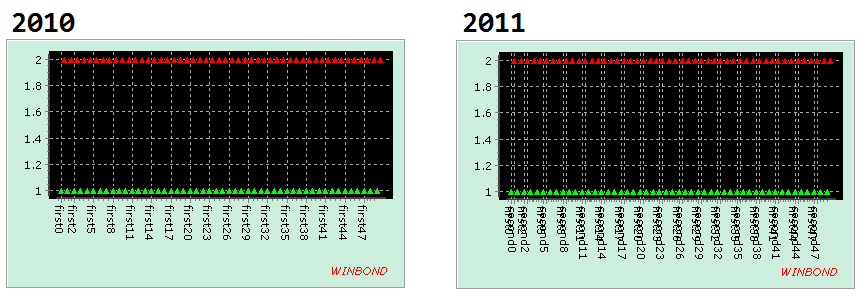

Please take a look at the following pictures.
The x axis lables are in a mess.

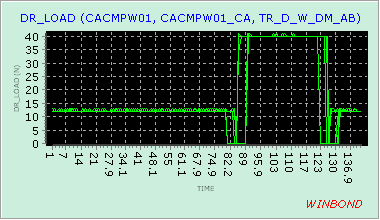

2010.png : TeeChart2010.0.0.3ActiveX
2011.png : TeeChart2011.0.0.4ActiveX

Can you tell me how to fix this ?

[Yeray]

Hi HHYen,

Can you please give a try to the recently published v2011.0.0.5?
The problem you found looks the same discussed here

[HHYen]

We've tried v2011.0.0.5.
It seems nothing change to me.
The X axis label are still in a mess.
Any idea ???

[Yeray]

Hi,

Then I'm afraid I'll have to ask you for a simple example project we can run as-is to reproduce the problem here.
Thanks in advance.

[HHYen]

Here you are.

[Yeray]

Hi,

What about forcing the bottom axis to show the values instead of the labels?

Code: Select all

tChart.Axis.Bottom.Labels.Style = EAxisLabelStyle.talValue;

Alternatively, the latest version where this changed in AX was with v2011.04, so with v2010.03 the problem that is affecting you wasn't reproducible (problem #1 mentioned here).

[HHYen]

Hello.

Thanks for your help.

Line chart is ok with

Code: Select all

tChart.Axis.Bottom.Labels.Style = EAxisLabelStyle.talValue;

As for point chart. Value is no meaning for us. We would like to show text in X axis label.

2010 version is no problem.
2011 version is not good for me.


any idea ?

[Yeray]

Hi,

With v2011.0.0.4 or v2011.0.0.5, the only solutions I see:
- Only add one series with labels. In your example, if I change the second series loop for this, it seems to work fine:

Code: Select all

            for (int i = 0; i < 50; i++)
                iSeries.AddXY(i + 0.5, 2, /*"second" + i*/ "", 0x0000ff);

- Use custom labels instead of letting talText to draw all the labels of all the series. Adding this at the end of your Main method (just before exporting the chart to png) it seems to work fine:

Code: Select all

            tChart.Environment.InternalRepaint();
            int lastpos = 0;
            tChart.Axis.Bottom.Labels.Clear();
            for (int i = 0; i < tChart.Series(0).Count; i++)
            {
                if ((lastpos == 0) || (tChart.Axis.Bottom.CalcXPosValue(tChart.Series(0).XValues.Value[i]) - lastpos > 10))
                {
                    tChart.Axis.Bottom.Labels.Add(tChart.Series(0).XValues.Value[i], tChart.Series(0).PointLabel[i]);
                    lastpos = tChart.Axis.Bottom.CalcXPosValue(tChart.Series(0).XValues.Value[i]);
                }
            }

[HHYen]

Hello,

Thanks for your help.
I have no further questions.

[Yeray]

Hi,

You are welcome!
