Issues migrating Tower-Chart from Tee v2010 to Tee v2016

[Dominik]

I am currently trying to migrate a tower chart from Tee Chart Pro 2010.0.0.3 to Tee Chart Pro 2016.0.0.2. Unfortunately I am facing some problems:

With the 2010 version the chart works fine. I have 3 series (3D) and each of them starts at its own defined origin (0,7,14). Origin 0 applies to "niedrig", origin 7 applies to "mittel" and origin 14 applies to "hoch" on the left axis.

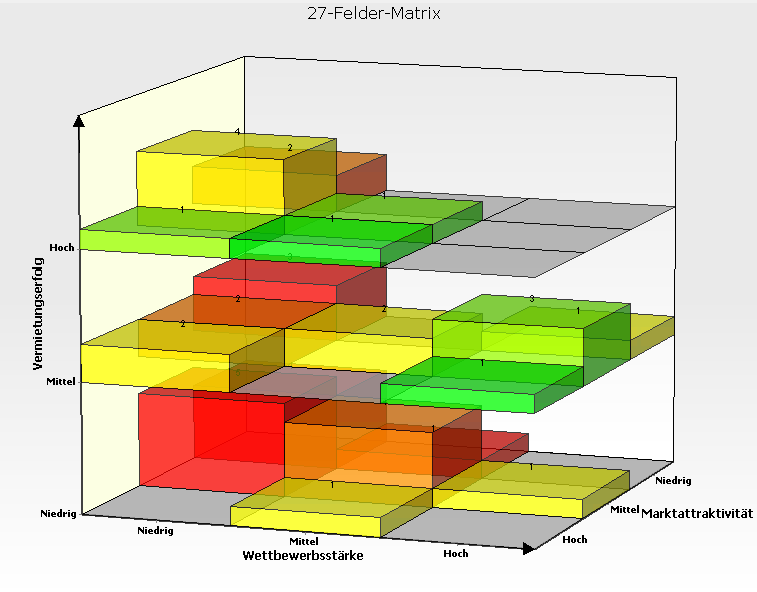

The Chart with the 2010 version looks like the attached screenshot:


After migrating the chart to the 2016 version each tower of series1 (origin 7) and series2 (origin 14) goes from its y-value to 0 instead of going from its y-value to the series' origin.

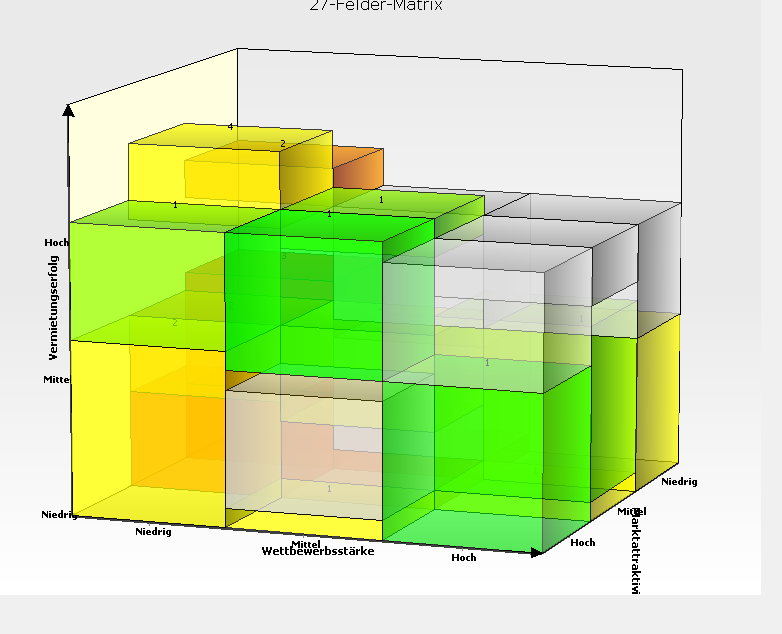

The Chart with the 2016 version looks like the attached screenshot:



Which setting do I have to change in order to have the chart working with the 2016 version?

Thanks in advance!

[Yeray]

Hello,

I reproduced the problem in TeeChart VCL (note TeeChart ActiveX is a wrapper from it) so I've added it to the public tracker:
http://bugs.teechart.net/show_bug.cgi?id=1718

I've also fixed so the next maintenance release should include it.

[Dominik]

Thanks for your reply.

Is there already a schedule when the next maintenance release will be available for download?

[Yeray]

Hello,

Is there already a schedule when the next maintenance release will be available for download?

I'm afraid I can't tell you when it will be published, but we try to publish ActiveX releases quarterly.
And IO can tell you the last version before the bug was v2013.0.1.4, in case you want to upgrade your v2010 to it in the meanwhile.

[Dominik]

hi Yeray,

do you already know when the next active x release fixing the above reported bug will be available for download?

best regards,
Dominik

[Yeray]

Hello Dominik,

We try to publish TeeChart ActiveX releases quarterly. We'll try to publish the next maintenance release around the beginning of March.

[Dominik]

hi Yeray,

I still have some issues migrating a tower chart from teechart v.2010 to teechart v.2017 (activeX).

I have a tower chart with 3 layers (origin 1: 0, origin 2: 100, origin 3: 200). Layers 1 and 2 are working fine so far, but layer 3 behaves strange. Maybe you can help.

Layer 3 is set to start at origin 200 which is yet working correctly. But layer 3 is - in contrast to layer 1 and 2 - extending from 200 to 300 (left axis). I really need layer 3 to have the exact same behavior as layer 1 and layer 2. What settings do I have to set?

Many thanks in advance and best regards,
Dominik

[Yeray]

Hello,

I could reproduce the problem so I've added it to the public tracker:
http://bugs.teechart.net/show_bug.cgi?id=1819

Note it's a TeeChart VCL bug that TeeChart ActiveX has inherited because the later is a wrapper of the former.
The last version not reproducing this problem is TeeChart ActiveX v2013.0.1.4

[Dominik]

Hi Yeray,

is there a possible workaround to fix this bug?

I really need to have this feature working! I suspect I cannot wait for the next release...

Best regards,
Dominik

[Yeray]

Hello Dominik,

Playing a little bit with the Origins I found a way to workaround it, at least for this situation:

Code: Select all

Private Sub Form_Load()
  Dim i, x, z As Integer
  For i = 0 To 7
    TChart1.AddSeries scTower
    With TChart1.Series(i).asTower
      .UseOrigin = True
      If i < 2 Then
        .Origin = 100 * i
      Else
        .Origin = TChart1.Series(i - 1).asTower.Origin + (TChart1.Series(i - 1).asTower.Origin - TChart1.Series(i - 2).asTower.Origin) - 100
      End If

      For x = 0 To 2
        For z = 0 To 2
          .AddXYZ x, 100 * i, z, "", clTeeColor
        Next z
      Next x
    End With
  Next i

  TChart1.Axis.Left.SetMinMax 0, 800
End Sub
