As promised here are the results of my investigations: First of all FPU and SSE masks are set by Delphi and they are different for 32bit and 64bit applications. See the following screenshot: exception.png Both screenshots are from my test application, and as far as I can tell those options are set w...

As it seems Intel states (64-ia-32-architectures-software-developer-vol-1-manual): 4.9.1.4 Numeric Overflow Exception (#O) The processor reports a floating-point numeric overflow exception whenever the rounded result of an instruction exceeds the largest allowable finite value that will fit into the...

I did some more tests (because I got some more Excpetions) and finally changed my fix to: MinAxisIncrement :TAxisValue = {$IFDEF TEEVALUESINGLE} 1.40129846432482e-45 {$ELSE} {$IFDEF WIN64} 0.00000001 {$ELSE} 4.94065645841247e-324 //this IS MinDouble {$ENDIF} {$ENDIF}; // Epsilon 0.000000000001; { <-...

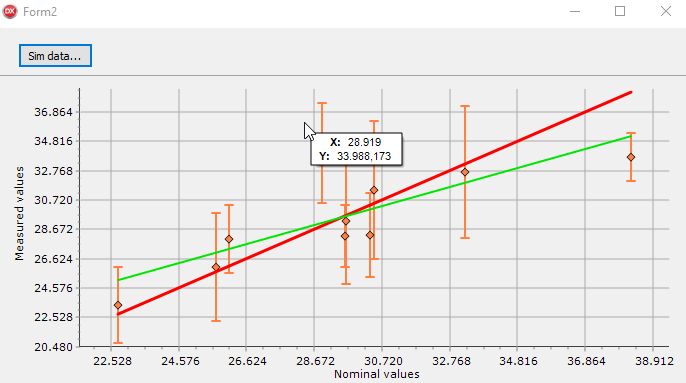

Using a MarkTipTool with a TErrorSeries triggers the hints some distance left of the bar (you can use the sample attached to the previouse post).

TMarksTipTool.Format.TextAlignment=taLeftJustify is not stored in .dfm instead taCenter is used when the application is compiled or the form is reopened in the IDE

Use the attached application (ChartTool1) for testing it.

yes thumb up for this feature!

btw. I'm interested in the TeRecompile src too (I'd like to see if I could implement my output path request from last year)

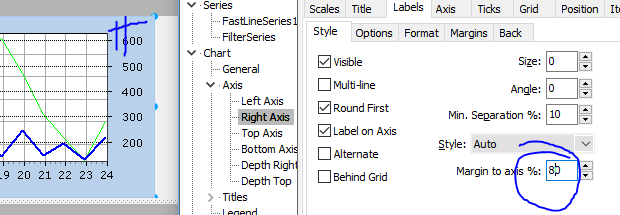

The margin to axis % isn't stored in the .dfm (at least of the 'Right Axis'): After reopening the form (or compiling and running an application) that value is reset to 10%

I have fixed the problem for my current version (v2017.20.170306) by adding the following code: TeEngine.pas Function TChartAxis.CalcIncrement:TAxisValue; ... Begin ... else result:=result*0.5; // Patch: Begin if IsZero(result) then Result := 0.00000001; // Patch: End; End; I had to put it in there ...

... So I tried to find the place where the error origins from and found TCgartAxis,Draw,DoDrawLabels exception_01.PNG At the breakpoint (line 7454) IIncrement has the value mentioned in the previous post (and got calculated a few lines above). This might be the place to patch the the problem (but ma...

This time i got a pretty nasty bug in my 64bit Application (and the bug is gone when compiling with 32bit) which has cost me some time to realize its 64bit. I've attached a sample application (TChart_Resize). You need to comile and run it as 64bit application! Use the mouse, grab the right border of...

1++

...and here's sample....

I run yet in another problem I was not able to solve. This time I supplied a "real" filter form my application and now when resising the bar (height) there is a black line appearing with some height-values: blackline.PNG I have again attached a sample application. Please run it and resize the form (...

... but it didn't solve the resize - issue.

So I switched to custom labels (i finally was able do access the custom labels demo) and do the resize after the custom labels are set.

So just in case someone needs that sort of behaviour, I attatched my latest working sample application...

I seems I had troubles with my backup-ssd. After I downloaded the installer again, there where all the options I needed (including not to install the packages into the IDE)!
