Hi Steema,

I have an issue with the NumericGauge in WPF. I'm using the latest version of teechart (4.1.2011.7283).

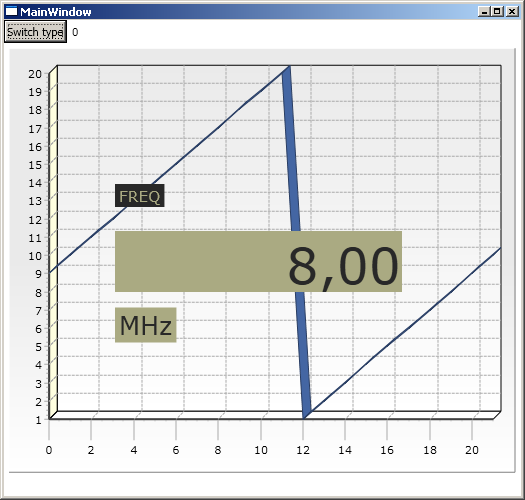

When The type of the series is modified, the content from the NumericGauge is not hidden: I made a small project to reproduce this issue.

Thank you.
Antoine.

I have been able to reproduce it.

I enclosed the small I made to test it.

Ok. To by-pass this limitation I have tried to used the ClickSeries of the TChart component and the Click of the CircularGauge without any success. public void InitTeeChart() { CircularGauge gauge = new CircularGauge(); gauge.Click +=new MouseEventHandler(gauge_Click); tc_Chart.ClickSeries+=new TCha...

I am using the WPF version of TChart.

Hi, Just to let you know that I found an issue with the Label axes: AxesLabel.PNG the axes is configure like this: in_TChart.Axes.Left.Minimum = 49; in_TChart.Axes.Left.Maximum = 50; in_TChart.Axes.Left.Increment = 0,1; in_TChart.Axes.Left.Labels.Exponent = true; in_TChart.Axes.Left.Labels.ValueForm...

I've managed to do it with the Line using this: this.tc_Chart.ClickAxis +=new MouseEventHandler(tc_Chart_ClickAxis); //... private void tc_Chart_ClickAxis(object sender, MouseEventArgs e) { Console.WriteLine(e.ToString()); } but it does not work with the CircularGauge.

Hi,

Is it possible to use the ClickAxis event on a chart (Line and CircularGauge) in WPF?
If yes, can you provide me an exemple?

Thanks,
Antoine.

Thanks, it works!

Hi Sandra, I am have some difficulties to deal with the Axis of my gauge. Has you can see on the picture, the labels on the Axis are all "0". At the bottom left you have the current value of the gauge. gauge.PNG I am using the following code to display the axis: CircularGauge gauge = new CircularGau...

Hi Sandra, I enclosed a test project with a simple CircularGauge with the NumericGauge wich does not update. It seems that the NumericGauge does not work at all (even without the CircularGauge) in WPF. The code you provide me to change the color of the RedLine and GreenLine works great. Regards, Ant...

Oh, and has you can see, the axis is not Logarithmic. In the timer_tick, i'm using this to update the value: Random rand = new Random(); if (tc_Chart.Series[0].GetType() == typeof(CircularGauge)) { ((CircularGauge)tc_Chart.Series[0]).Value = rand.Next(1000); tc_Chart.Invalidate(); }

Hi Sandra, I am using the 4.1.2011.4193 version of teechart. I'm using the WPF component. I have tried to display the NumericGauge in the CircularGauge but nothing is displayed in it as you can see on the image below: http://img847.imageshack.us/img847/1651/sansreme.png I have set the AutoValueNumer...

Thanks, that's what I wanted. Now I have the following code: CircularGauge gauge = new CircularGauge(); //Gauges gauge = new Gauges(); gauge.TotalAngle = 220; gauge.RotationAngle = 0; gauge.DisplayRotationAngle = 0; //display the numeric value gauge.NumericGauge.Visible = true; gauge.FaceBrush.Color...

I have tried to use the logarithmic axis with a Winform Gauge but it gave me the same result.

Hi, I would like to use a logarithmic axis on a gauge but I don't know how to do it. I have the following code: Gauges gauge = new Gauges(); gauge.TotalAngle = 270; gauge.RotationAngle = 225; Steema.TeeChart.WPF.Axis logAxis = tc_Chart.Axes.Right; logAxis.Logarithmic = true; logAxis.LogarithmicBase ...
