Hi In one of the earlier posts I read something about TeeChart.Direct2D.dll which gives considerable performance improvement. I wanted to know more about this. 1. Can it improve rendering performance in Teecharts WPF version. 2. Please provide details about what all functionalities does it provide. ...

Hi We are displaying multiple series on chart and the series have custom axis. PFA herewith the snapshot of problem we are describing. The problem is that when you scroll the data in one of the series, the series data gets drawn in the area of another series. Actually if series data goes out of seri...

Thanks for the reply

Regards
- JC

Hi Sandra Thanks for your reply. One related query. We have handled tChart.Zoomed event and when we use AxisScroll to scroll the data, this event handler for Zoomed is un-necessarily getting called. This means that even when we scroll the data(using AxisScroll) zoomed event is raised. Is there any w...

Hi I am using AxisScroll in the chart. Is there any event which is raised when I drag my mouse over the axis. The axis moves automatically but I want to do some thing more when user will drag mouse over the axis. Is there any way by which I can detect that user is scrolling using AxisScroll. Regards...

Hi Yeray

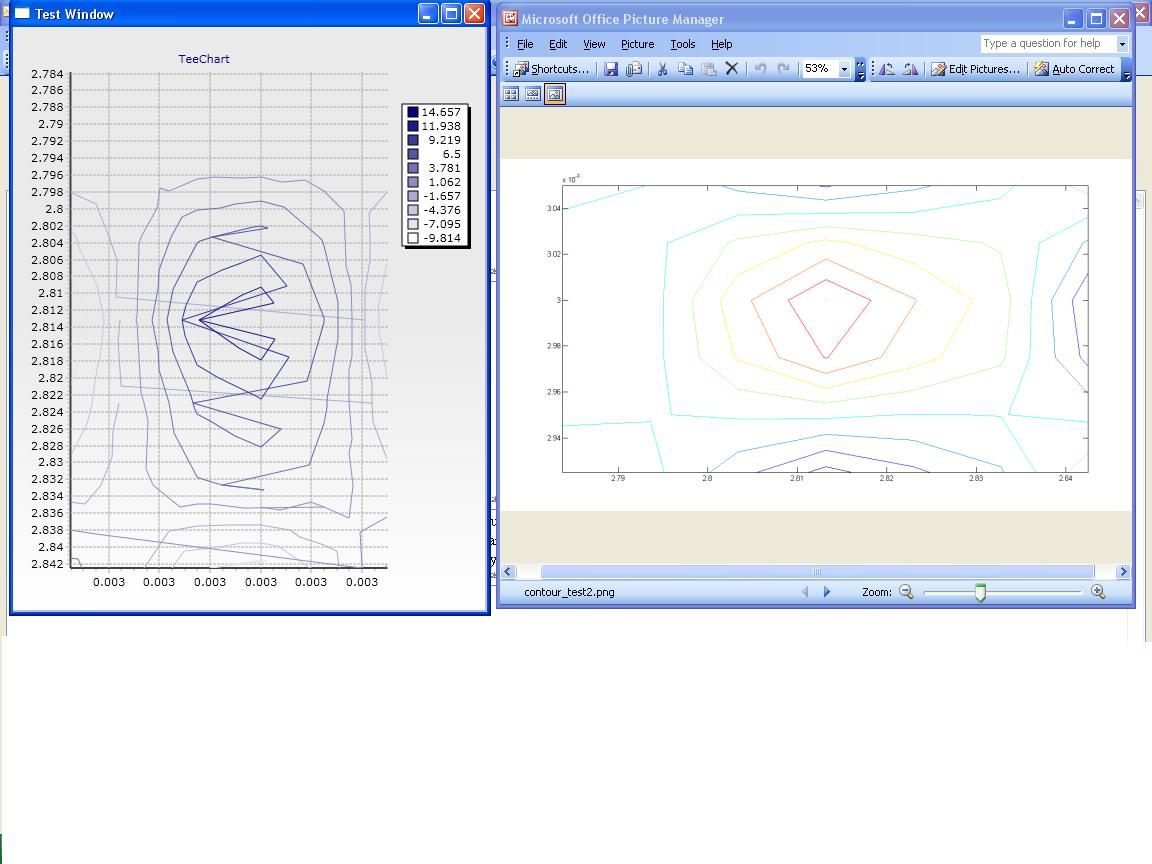

I have attached the snapshot from Matlab .

Regards
- Jeevan

Hi Narcis

Thanks for your reply.
I didn't quite understand how using custom levels will solve this issue. Actually we are using custom levels and even then it showed similar reason.
Also we tried plotting same data in Matlab and it worked nicely.
Can you please help me with this.

Regards
- Jeevan

Hi We have some data for which contours doesn't seem to be connected properly. Can you please let me know what is the actual problem and how can I fix it. I have uploded a ready to run application with the mentioned data files on "http://www.steema.net/upload" site. File name is Contours.zip. It con...

Hi Yeray Thanks for your inputs. I have given below a few lines in our data. This data fits in the format which you have mentioned. Also if we try to load some data out of it. We are getting contours. So I still have my question that why it is not able to load entire data. Are there performance issu...

Hi Yeray

From the post I found two important things
1. Irregular grid should be true
2. x and z Data should be equidistant.

And the data which we are using in the application staisfies the two conditions.
Can you please give me more details on what we are missing.

Regards
- Jeevan

Hi Yeray

I have sent the sample application on sales@steema.com.

Thanks and regards
- Jeevan

Hi Yeray

Sorry for putting license number and thanks for hiding it.
I am not able to upload application on the forum because of restriction of size. I need to attach sample data file whose size is around 3-4 mb

Regards
- Jeevan

Hi

We are using license number ***.

We are facing a problem to load some data in the contour plot.

I am not able to attach sample application on the site http://steema.net/upload/. Caan you please let me know if there is some other way to upload the attachments.

Regards
- Jeevan

Hi Narcís

Any update on this. We have already uploaded the new application.

Regards
- JS

Hi Narcís, I have uploaded the sample project "ContourPlotSample.zip" on the same site. We are using version 3 of TeeChart library (WPF). No the application doesn't take much time to load. Also for your reference,In the folder we have given three files of data which are x,y and z which we add in the...
