Hello I have implemented your suggestion, along with further lines to deal with the center, hand & green/red lines & the solution is working... // Add the beforeDraw method at the CreateGauge method cv.Chart.BeforeDraw += Chart_BeforeDraw; private void Chart_BeforeDraw(object sender, Steema.TeeChart...

Thank you for your help. I have added the Chart.Chart.InternalDraw() method call to the end of the Resize method & while it does re-draw the font, centre point & colour band in the correct size it leaves the original (incorrectly sized) chart elements in position, creating a "shadow" effect - see im...

Steema version = Steema.TeeChart.NET.Xamarin.Forms v4.2021.4.22 Xamarin Forms version = v5.0.0.2012 Development platform = Visual Studio 2019 Pro v16.9.1 Target device = Android 6.0 (API 23) to API 10.0 (API 29) smallest res = 480x800 I am trying to write code to re-size aspects of a circular gauge ...

Hello,

Thank you for your comprehensive answer. I have now applied all the fixes which you have listed & the legend & chart are now showing as required.


Once again, thanks for your help.

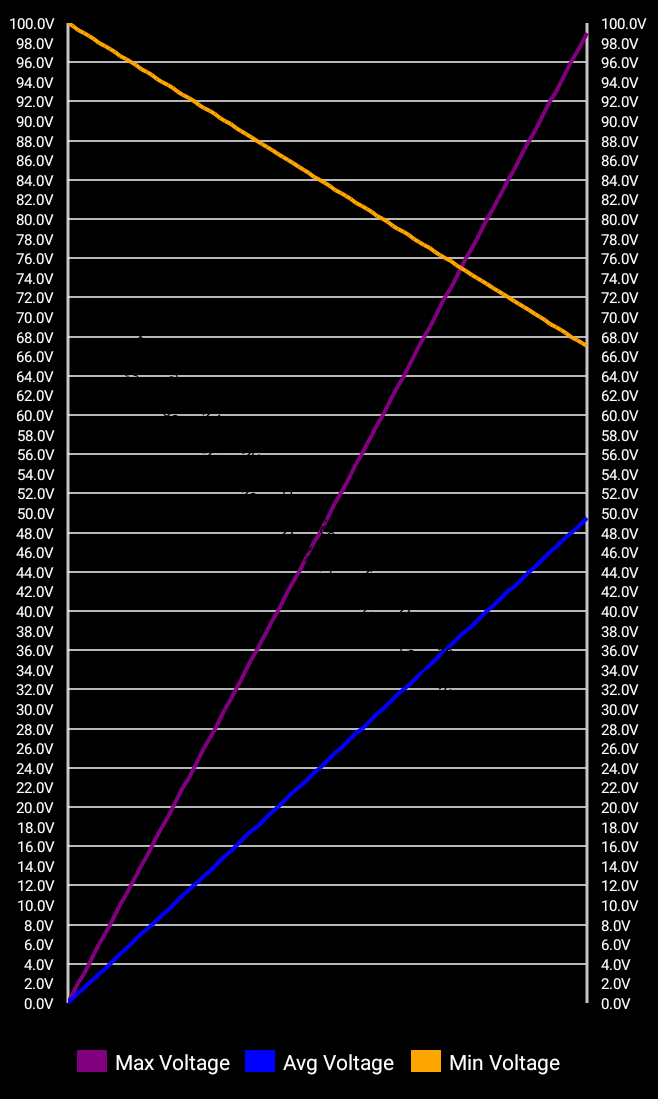

Steema version = Steema.TeeChart.NET.Xamarin.Forms v4.2021.1.22 Xamarin Forms version = v5.0.0.1931 Development platform = Visual Studio 2019 Pro v16.7.7 Target device = Android 6.0 (API 23) to API 10.0 (API 29) smallest res = 480x800 I am trying to re-style the legend for a line chart but I cannot ...

Hello, This new code for the thermometer graphic is excellent & far more than I expected you to provide. I have now integrated the battery & thermometer graphic drawing code into my main App (see screenshot below) & will be able to move this into production. Gauge Screenshot (with drawn graphics).pn...

Hello, Thank you for your answer. I have tested the proposed work-around solution here and it is working as you have described. I should be able to use the g.Pen methods, as demonstrated, to create the images required, although it will mean more work than simply resizing an original image file. The ...

Hello, Appreciate that you probably have not had chance to look into this yet & reply, but as I am being asked to find a resolution to this issue I've been trying some more possible solutions based on your suggestion. I've tried all the "Before" events available (i.e. BeforeDraw, BeforeDrawAxes, Bef...

Hello, Thankyou for your help. I have now re-written my image overlay code, as suggested, and I now resize the image in separate code before using the following line to draw the image... g.Draw(new Rectangle(xpos, ypos, imgX, imgY), img, Steema.TeeChart.Drawing.ImageMode.Normal, false); I can now su...

Using = Steema.TeeChart.NET.Xamarin.Forms v4.2020.10.26 Development platform = Visual Studio 2019 Pro v16.7.7 Target device = Android 6.0 (API 23) to API 10.0 (API 29) smallest res = 480x800 I have a requirement to draw an image on top of a circular gauge at a position relative to the gauge and for ...
